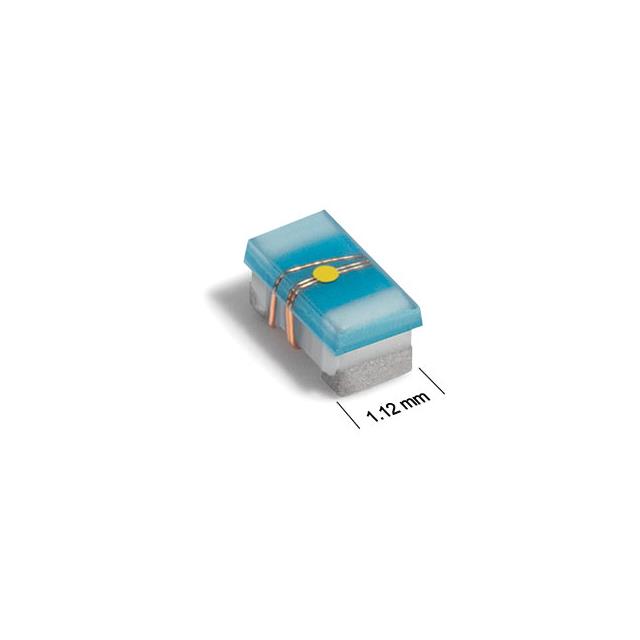

0603CS-30NXJRW
ActiveCoilcraft
FIXED IND 30NH 600MA 220MOHM SM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
0603CS-30NXJRW
ActiveCoilcraft
FIXED IND 30NH 600MA 220MOHM SM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 0603CS-30NXJRW |
|---|---|
| Current Rating (Amps) | 600 mA |
| DC Resistance (DCR) | 220 mOhm |
| Frequency - Self Resonant | 2.25 GHz |
| Height - Seated (Max) [Max] | 1.02 mm |
| Height - Seated (Max) [Max] [z] | 0.04 " |
| Inductance | 30 nH |
| Inductance Frequency - Test | 250 MHz |
| Material - Core | Ceramic |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 0603 (1608 Metric) |
| Q @ Freq | 37, 250 MHz |
| Ratings | AEC-Q200 |
| Shielding | Unshielded |
| Size / Dimension [x] | 1.8 mm |
| Size / Dimension [x] | 0.071 in |
| Size / Dimension [y] | 0.044 in |
| Size / Dimension [y] | 1.12 mm |
| Tolerance | 5 % |
| Type | Wirewound |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 1 | $ 1.05 | |
| 200 | $ 0.85 | |||
| 500 | $ 0.64 | |||
Description
General part information
0603CS-30NXJRW
30 nH Unshielded Wirewound Inductor 600 mA 220mOhm Max 0603 (1608 Metric)
