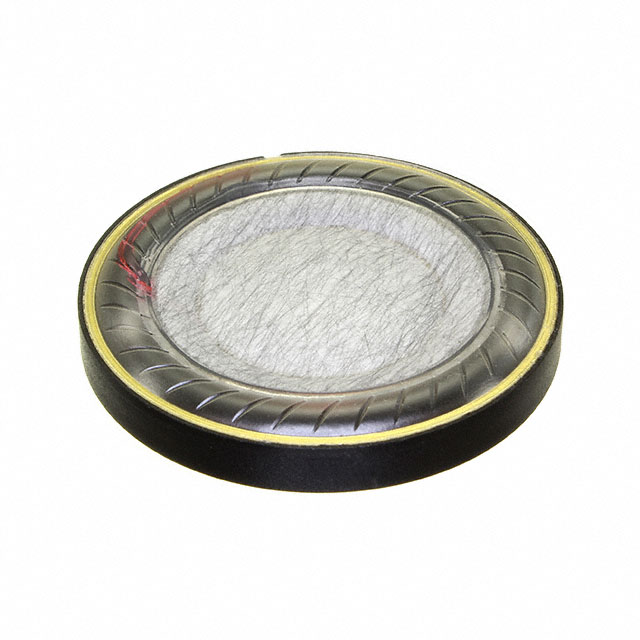

BFC-D45-7-32-012
ObsoleteGlass Acoustic Innovations Co. Ltd.
SPEAKR 32OHM 40MW TOP PORT 113DB
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
BFC-D45-7-32-012
ObsoleteGlass Acoustic Innovations Co. Ltd.
SPEAKR 32OHM 40MW TOP PORT 113DB
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | BFC-D45-7-32-012 |
|---|---|
| Efficiency - dBA | 113 dBA |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Frequency Range [Max] | 20 kHz |
| Frequency Range [Min] | 10 Hz |
| Height - Seated (Max) [Max] | 7.4 mm |
| Height - Seated (Max) [Max] | 0.291 in |
| Impedance | 32 Ohms |
| Material - Magnet | Nd-Fe-B |
| Port Location | Top |
| Power - Max [Max] | 100 mW |
| Power - Rated | 0.04 W |
| Shape | Round |
| Size / Dimension [diameter] | 1.575 " |
| Size / Dimension [diameter] | 40 mm |
| Technology | Magnetic |
| Termination | Solder Pads |
| Type | General Purpose |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
BFC-D45-7-32-012
32 Ohms General Purpose Speaker 40 mW 10 Hz ~ 20 kHz Top Round
