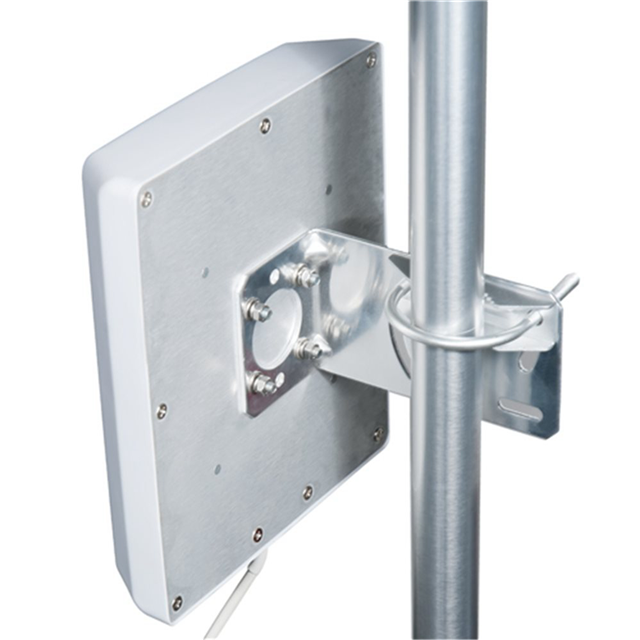

WAP24172
ActiveTurmode
PANEL WIFI ANTENNA FOR 2.4GHZ
Deep-Dive with AI
Search across all available documentation for this part.
WAP24172
ActiveTurmode
PANEL WIFI ANTENNA FOR 2.4GHZ
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | WAP24172 |
|---|---|
| Antenna Type | Panel |
| Applications | 802.11g, 802.11b, 802.11n |
| Frequency (Center/Band) | 2.4415 GHz |
| Frequency Range [Max] | 2.483 GHz |
| Frequency Range [Min] | 2.4 GHz |
| Gain | 12 dBi |
| Height (Max) [Max] | 35.05 mm |
| Height (Max) [Max] | 1.38 in |
| Mounting Type | Bracket Mount |
| Number of Bands | 1 |
| Power - Max [Max] | 20 W |
| RF Family/Standard | WiFi |
| VSWR | 1.5 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 271.98 | |
| 5 | $ 258.39 | |||
| 10 | $ 244.79 | |||
| 20 | $ 231.19 | |||
| 50 | $ 217.59 | |||
Description
General part information
WAP24172
RF ANTENNA 802.11b/g/n Panel Bracket Mount
Documents
Technical documentation and resources
No documents available
