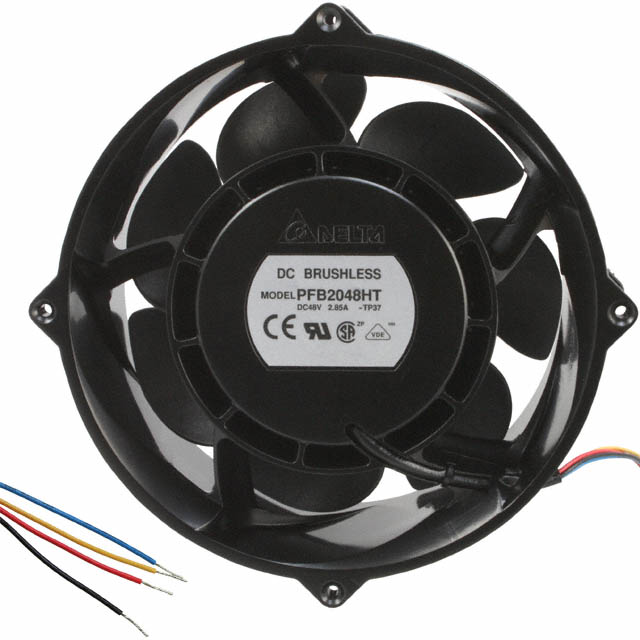

PFB2048HT-TP37
ObsoleteDelta Electronics
FAN AXIAL 208X70MM 48VDC WIRE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PFB2048HT-TP37
ObsoleteDelta Electronics
FAN AXIAL 208X70MM 48VDC WIRE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PFB2048HT-TP37 |
|---|---|
| Air Flow | 569.5 CFM |
| Air Flow | 15.95 m³/min |
| Approval Agency | UL, CE, VDE, CSA |
| Bearing Type | Ball |
| Current Rating (Amps) | 2.36 A |
| Fan Type | Tubeaxial |
| Features | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) |
| Lifetime @ Temp. | 80000 Hrs |
| Material - Blade | Plastic |
| Material - Frame | Aluminum |
| Noise | 68.5 dB(A) |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -10 °C |
| Operating Temperature [Min] | -10 °C |
| Power (Watts) | 113.28 W |
| RPM | 4800 RPM |
| Size / Dimension [diameter] | 208 mm |
| Termination | 4 Wire Leads |
| Voltage - Rated [custom] | 48 VDC |
| Voltage Range [Max] | 56 VDC |
| Voltage Range [Min] | 36 VDC |
| Weight | 1.6 kg |
| Weight | 3.5 lbs |
| Width [y] | 70 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
PFB2048HT-TP37
Fan Tubeaxial 48VDC Round - 208mm Dia Ball 569.5 CFM (15.95m³/min) 4 Wire Leads
