21002211-01
ActiveChogori Technologies Inc.

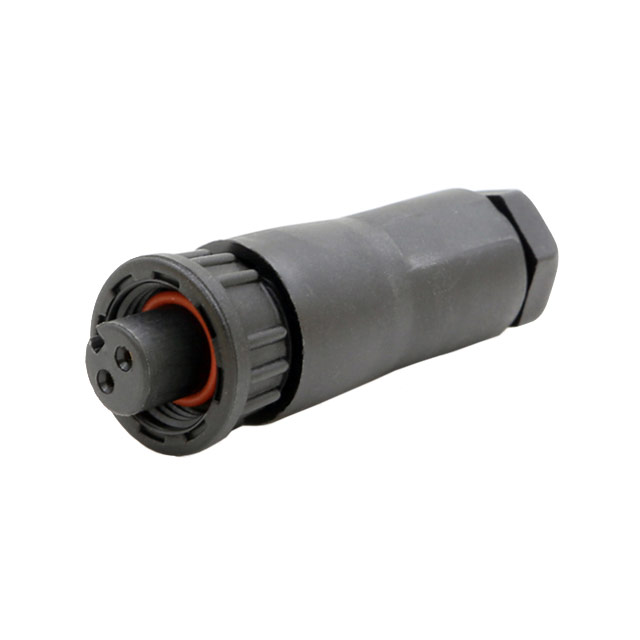

CONN PLUG FMALE 2POS SOLDER CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
21002211-01
ActiveChogori Technologies Inc.
CONN PLUG FMALE 2POS SOLDER CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 21002211-01 |
|---|---|
| Applications | Industrial, Communication Systems, Lighting, Medical |
| Backshell Material, Plating | Nylon 6/6, Polyamide (PA66) |
| Cable Opening [diameter] | 0.138 in, 0.268 in |
| Cable Opening [diameter] | 3.5 mm, 6.8 mm |
| Color | Black |
| Connector Type | Female Sockets, Plug |
| Contact Finish - Mating | Gold |
| Contact Material | Brass, Phosphor Bronze |
| Current Rating (Amps) | 5 A |
| Features | Coupling Nut, Backshell |
| Ingress Protection | IP67/IP68 - Dust Tight, Waterproof |
| Insert Material | Polyamide (PA66), Nylon 6/6 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -45 °C |
| Orientation | Keyed |
| Primary Material | Plastic |
| Shell Material | Polyamide (PA66), Nylon 6/6 |
| Shielding | Unshielded |
| Voltage Rating | 110 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 4.34 | |
| 10 | $ 3.94 | |||
| 25 | $ 3.73 | |||
| 50 | $ 3.65 | |||
| 100 | $ 3.47 | |||
| 250 | $ 3.04 | |||
| 500 | $ 2.95 | |||
| 1000 | $ 2.52 | |||
| 2500 | $ 2.35 | |||
Description
General part information
21002211-01
2 Position Circular Connector Plug, Female Sockets Solder Cup
