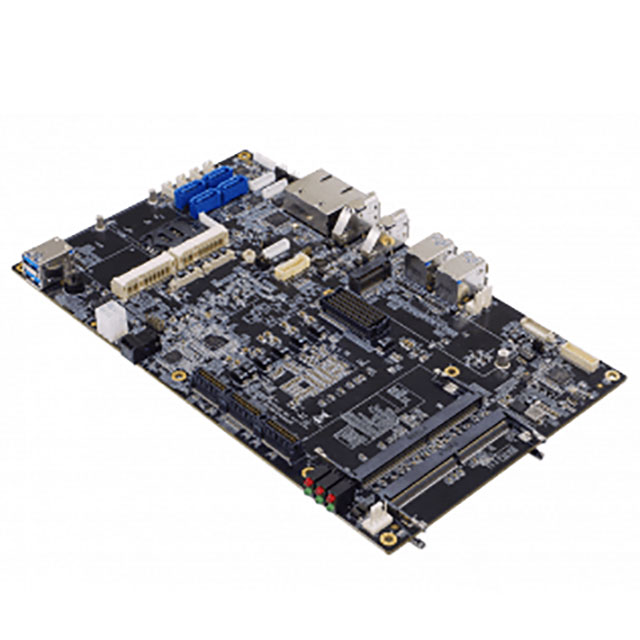

OXY5741A-04
Active7STARLAKE
EBX,PCIE/10,XEON E-2276ML
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
OXY5741A-04
Active7STARLAKE
EBX,PCIE/10,XEON E-2276ML
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | OXY5741A-04 |
|---|---|
| Cooling Type | Fan |
| Core Processor | XEON E-2276ML |
| Ethernet | 1000 Mbps, 100 Mbps, 10 Mbps |
| Ethernet | RJ45 |
| Expansion Site/Bus | FPE, M.2, Mini-PCIe, PCIe/104 |
| Form Factor | EBX |
| Number of Cores | 6 |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -20 C |
| Power (Watts) | 25 W |
| RAM Capacity/Installed | 0 GB, 128 GB |
| RS-232 (422, 485) | 2 |
| Size / Dimension [x] | 243.07 mm |
| Size / Dimension [x] | 9.57 " |
| Size / Dimension [y] | 146.05 mm |
| Size / Dimension [y] | 5.75 in |
| Speed [Max] | 4.2 GHz |
| Speed [Min] | 2 GHz |
| Storage Interface | SATA 3.0 (4) |
| USB | USB 2.0 (4), USB 3.0 (2), USB 3.1 (4) |
| Video Outputs | DP, LVDS |
| Watchdog Timer | True |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 5235.00 | |
Description
General part information
OXY5741A-04
Single Board Computer 2GHz ~ 4.2GHz 6 Core 128GB/0GB RAM XEON E-2276ML
