Technical Specifications
Parameters and characteristics for this part
| Specification | R2S-1515/HP |
|---|---|
| Applications | ITE (Commercial), Medical |
| Current - Output (Max) [Max] | 133 mA |
| Efficiency | 85 % |
| Features | SCP |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 8-SMD Module, 5 Leads |
| Power (Watts) | 2 W |
| Size / Dimension [x] | 12.8 mm |
| Size / Dimension [x] | 0.5 in |
| Size / Dimension [y] | 10.7 mm |
| Size / Dimension [y] | 0.42 " |
| Size / Dimension [z] | 0.35 " |
| Size / Dimension [z] | 9 mm |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 16.5 V |
| Voltage - Input (Min) [Min] | 13.5 V |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 | 15 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information

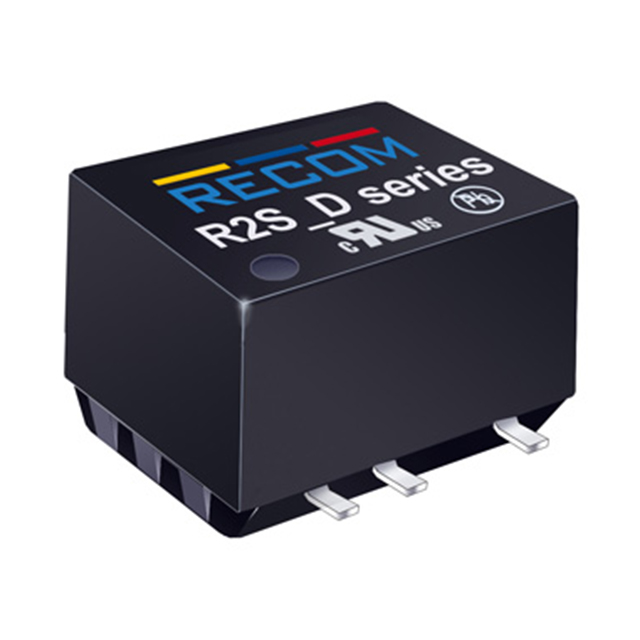

R2S-1515/HP
Isolated Module DC DC Converter 1 Output 15V 133mA 13.5V - 16.5V Input
