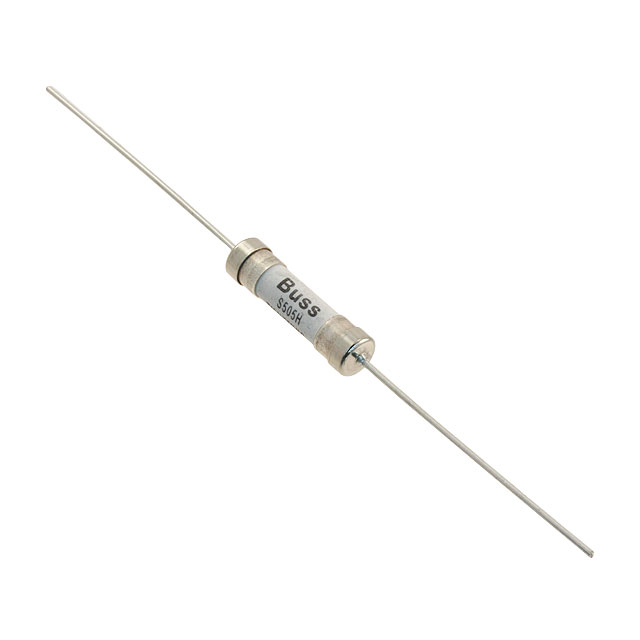

BK-S505H-V-1.25-R
ActiveEaton - Electronics Division
FUSE CERM 1.25A 600VAC 400VDC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | BK-S505H-V-1.25-R |
|---|---|
| Approval Agency | cULus, PSE/JET |
| Breaking Capacity @ Rated Voltage | 1.5 kA |
| Current Rating (Amps) | 1.25 A |
| DC Cold Resistance | 0.108 Ohms |
| Fuse Type | Cartridge, Ceramic |
| Melting I²t | 2.22 |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case [x] | 5 mm |
| Package / Case [y] | 20 mm |
| Response Time | Slow Blow |
| Size / Dimension | 21.1 mm, 5.54 mm |
| Size / Dimension [diameter] | 0.218 in |
| Size / Dimension [z] | 0.831 in |
| Voltage Rating - AC | 600 V |
| Voltage Rating - DC | 400 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 100 | $ 5.58 | |
Description
General part information
BK-S505H-V-1.25-R
1.25 A 600 V AC 400 V DC Fuse Cartridge, Ceramic Through Hole 5mm x 20mm (Axial)
