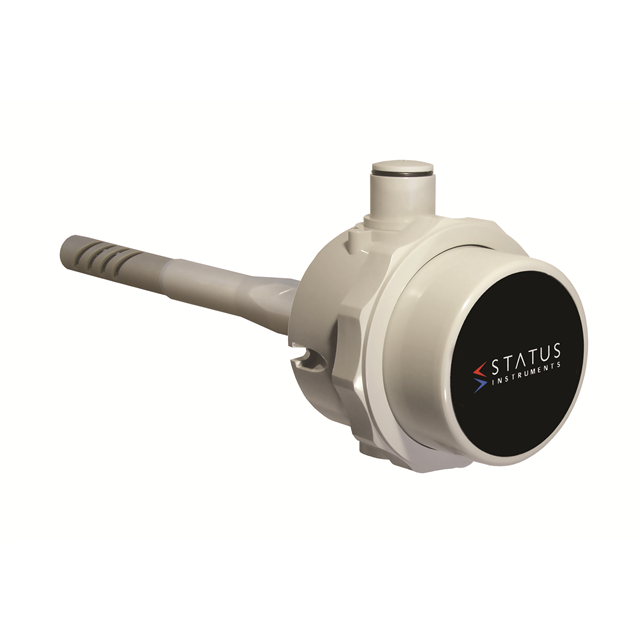

SEM710HM/D/HP01
ActiveStatus Instruments Ltd
HUMIDITY TRANSMITTER DUCT MOUNT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SEM710HM/D/HP01
ActiveStatus Instruments Ltd
HUMIDITY TRANSMITTER DUCT MOUNT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SEM710HM/D/HP01 |
|---|---|
| Accuracy | 2 % |
| Humidity Range [Max] | 100 % RH |
| Humidity Range [Min] | 0 % RH |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -30 ░C |
| Output [Max] | 20 mA |
| Output [Min] | 4 mA |
| Output Type | Analog Current, Analog Voltage |
| Sensor Type | Temperature, Humidity |
| Voltage - Supply [Max] | 32 VDC |
| Voltage - Supply [Min] | 11 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 300.80 | |
Description
General part information
SEM710HM/D/HP01
Humidity, Temperature 0 ~ 100% RH Analog Current, Analog Voltage ±2% RH Duct
Documents
Technical documentation and resources
