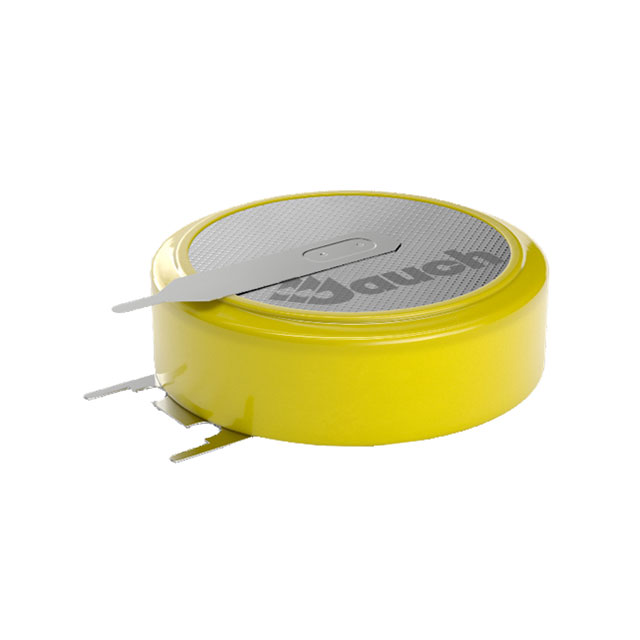

CR2477 V3
ActiveJauch Quartz
BATTERY LITHIUM 3V COIN 24.5MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CR2477 V3
ActiveJauch Quartz
BATTERY LITHIUM 3V COIN 24.5MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CR2477 V3 |
|---|---|
| Battery Cell Size | Coin |
| Battery Cell Size | 24.5 mm |
| Battery Chemistry | Lithium Manganese Dioxide |
| Capacity | 1 Ah |
| Discharge Rate | 2 mA |
| Shelf Life Start | Date of Manufacture |
| Shipping Info | Due to restrictions, only ground shipment is allowed. |
| Size / Dimension [diameter] | 0.97 ", 0.96 " |
| Size / Dimension [diameter] | 24.7 mm, 24.5 mm |
| Size / Dimension [z] | 0.3 " |
| Size / Dimension [z] | 7.7 mm |
| Termination Style | PC Pin (Vertical Mount) |
| Voltage - Rated | 3 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.35 | |
| Tray | 1 | $ 3.91 | ||
| 10 | $ 3.25 | |||
| 50 | $ 2.85 | |||
| 100 | $ 2.69 | |||
| 250 | $ 2.50 | |||
| 500 | $ 2.37 | |||
| 1000 | $ 2.24 | |||
| 2500 | $ 2.08 | |||
Description
General part information
CR2477 V3
Coin, 24.5mm Lithium Manganese Dioxide 3 V Battery Non-Rechargeable (Primary)
