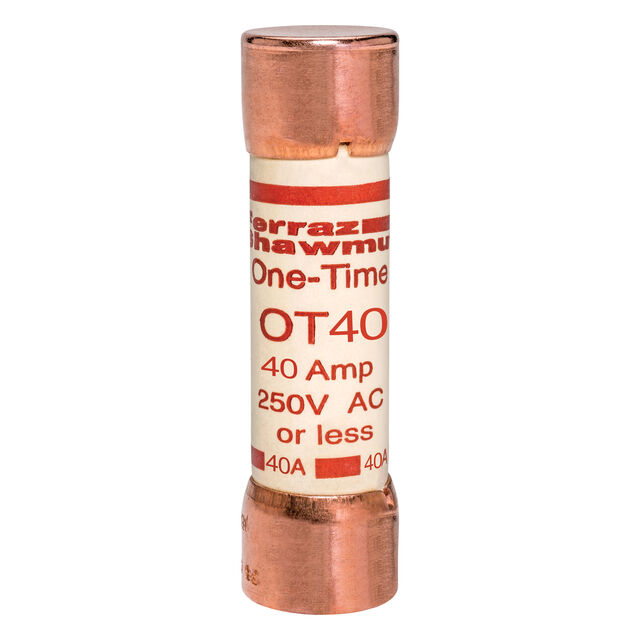

OT40
ActiveMersen USA Newburyport-MA L.L.C.
FUSE,CLASS K5,GENERAL PURPOSE,50
Deep-Dive with AI
Search across all available documentation for this part.
OT40
ActiveMersen USA Newburyport-MA L.L.C.
FUSE,CLASS K5,GENERAL PURPOSE,50
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | OT40 |
|---|---|
| Applications | Electrical, Industrial |
| Approval Agency | CSA, UL |
| Breaking Capacity @ Rated Voltage | 50 kA, 20 kA |
| Class | K5 |
| Current Rating (Amps) | 40 A |
| Fuse Type | Cartridge |
| Mounting Type | Requires Holder |
| Package / Case | Cartridge, Non-Standard |
| Response Time | Fast Blow |
| Size / Dimension [diameter] | 0.827 in |
| Size / Dimension [diameter] | 21 mm |
| Size / Dimension [z] | 76 mm |
| Size / Dimension [z] | 2.992 in |
| Voltage Rating - AC | 250 VAC |
| Voltage Rating - DC | 250 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 8.80 | |
| 5 | $ 8.49 | |||
| 10 | $ 8.17 | |||
| 50 | $ 6.29 | |||
| 100 | $ 5.34 | |||
| 250 | $ 5.03 | |||
| 500 | $ 4.40 | |||
| 1000 | $ 4.24 | |||
Description
General part information
OT40
40A 250 VAC 250 VDC Fuse Cartridge Requires Holder
