9012506.02
ActiveJULABO

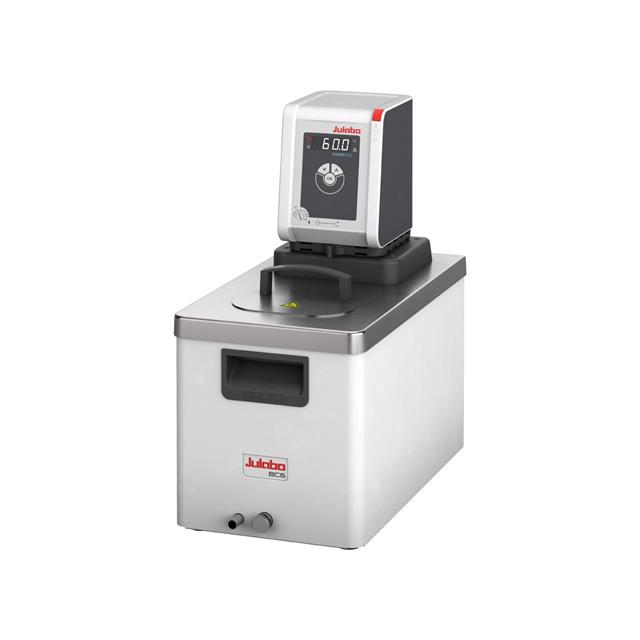

CORIO CD-BC6 HEATING CIRCULATOR,
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
9012506.02
ActiveJULABO
CORIO CD-BC6 HEATING CIRCULATOR,
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 9012506.02 |
|---|---|
| Dimensions - Overall [x] | 442 mm |
| Dimensions - Overall [x] | 17.4 in |
| Dimensions - Overall [y] | 9.5 in |
| Dimensions - Overall [y] | 241.3 mm |
| Dimensions - Overall [z] | 469.9 mm |
| Dimensions - Overall [z] | 18.5 in |
| Features | USB A, USB B, Flow Diverter |
| Flow Rate | 3.96 GPM |
| Flow Rate | 15 LPM |
| Fluid Capacity | 6000 ML |
| Fluid Capacity | 202.9 oz |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | 20 °C |
| Product Type | Recirculating Heater |
| Ratings | cULus, CE |
| Voltage | 115 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 3670.00 | |
Description
General part information
9012506.02
Recirculating Heater 115V 3.96GPM (15.0LPM)
