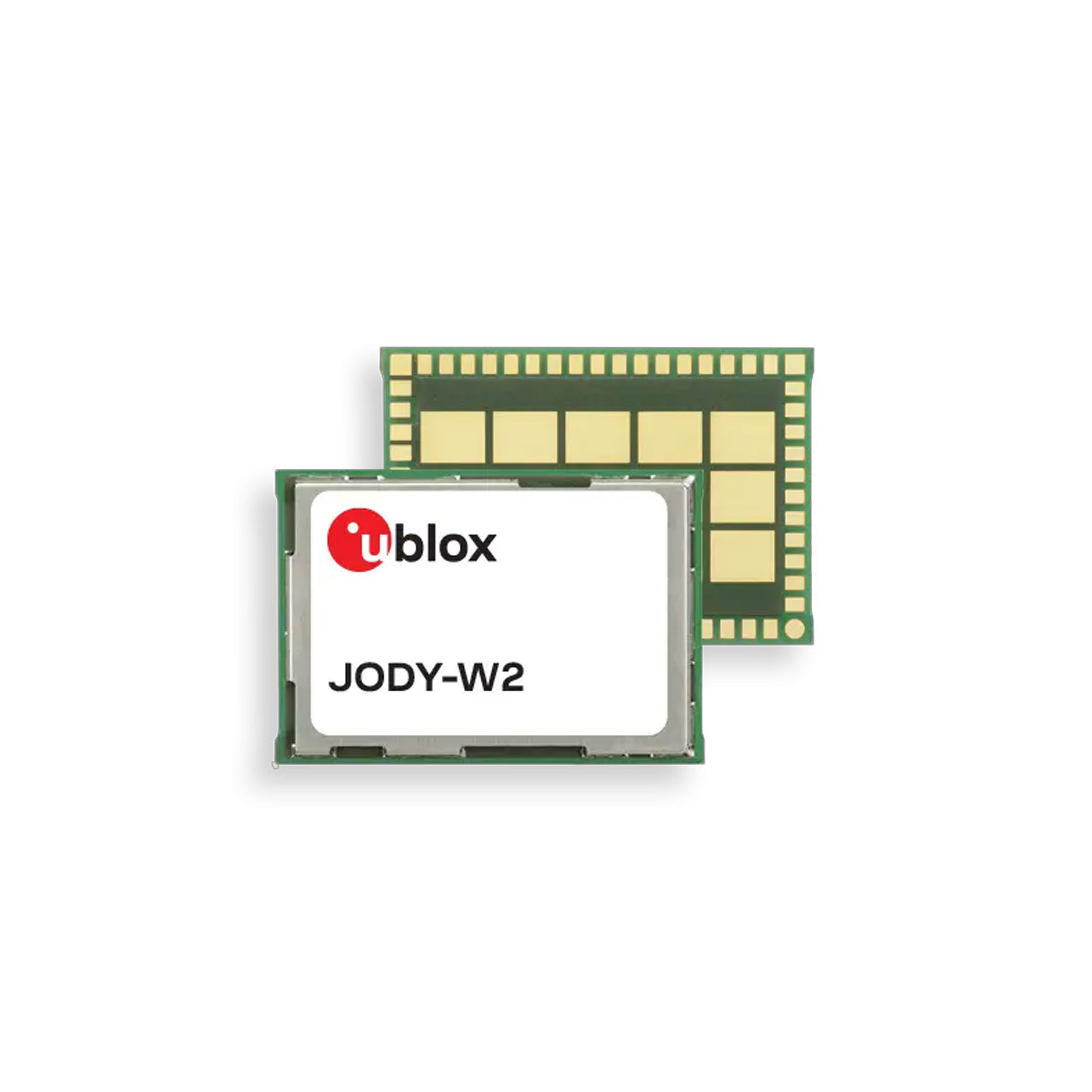

JODY-W263-00A
Activeu-blox
TXRX AUTO MOD WI-FI 5, BT/BLE5.2
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
JODY-W263-00A
Activeu-blox
TXRX AUTO MOD WI-FI 5, BT/BLE5.2
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | JODY-W263-00A |
|---|---|
| Antenna Type | Antenna Not Included |
| Current - Receiving [Max] | 87 mA |
| Current - Receiving [Min] | 70 µA |
| Current - Transmitting [Max] | 353 mA |
| Current - Transmitting [Min] | 70 µA |
| Data Rate | 433 Mbps |
| Frequency | 5 GHz, 2.4 GHz |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 75-SMD Module |
| Power - Output | 19 dBm |
| Protocol | 802.11a/b/g/n/ac, Bluetooth v5.2 |
| RF Family/Standard | WiFi, Bluetooth |
| Sensitivity | -99 dBm |
| Serial Interfaces | UART, SDIO, PCM, GPIO |
| Utilized IC / Part | NXP 88W8987A |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 28.20 | |
| 10 | $ 21.15 | |||
| Digi-Reel® | 1 | $ 28.20 | ||
| 10 | $ 21.15 | |||
| Tape & Reel (TR) | 500 | $ 21.15 | ||
Description
General part information
JODY-W263-00A
Bluetooth, WiFi 802.11a/b/g/n/ac, Bluetooth v5.2 Transceiver Module 2.4GHz, 5GHz Antenna Not Included Surface Mount
Documents
Technical documentation and resources
