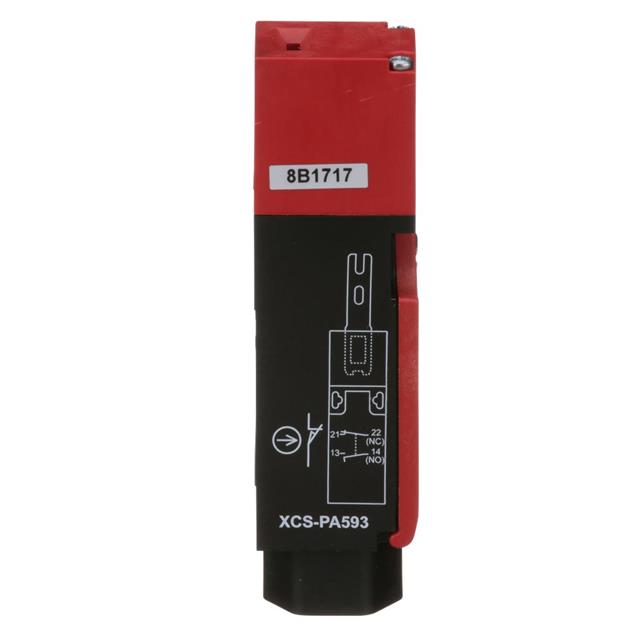

XCSPA593
ActiveTELEMECANIQUE SENSORS
SAFETY INTERLOCK SWITCH, XCS-PA SERIES, DPST-1NO, SPST-NC, SCREW, 300 V, 10 A
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | XCSPA593 |
|---|---|
| Actuator Type | Panel Disconnect |
| Approval Agency | CSA, UL |
| Circuit | DPST-NO/NC |
| Conduit Thread Size | 1/2" NPT |
| Current Rating (Amps) | 550 mA, 6 A |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -25 °C |
| Termination Style | Screw Terminal |
| Type | Non-Locking |
| Voltage Rating | 120 VAC, 125 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
XCSPA593
The XCSPA593 is a single-pole single-throw (SPST) 1NO-1NC Safety Switch with PA (polyamide) key operated turret head and slow-break, break before make contacts. This XCSPA series Compact Preventa™ safety detection range plastic (polyamide) switch features 1 entry tapped 1/2-inch NPT cable entry.
