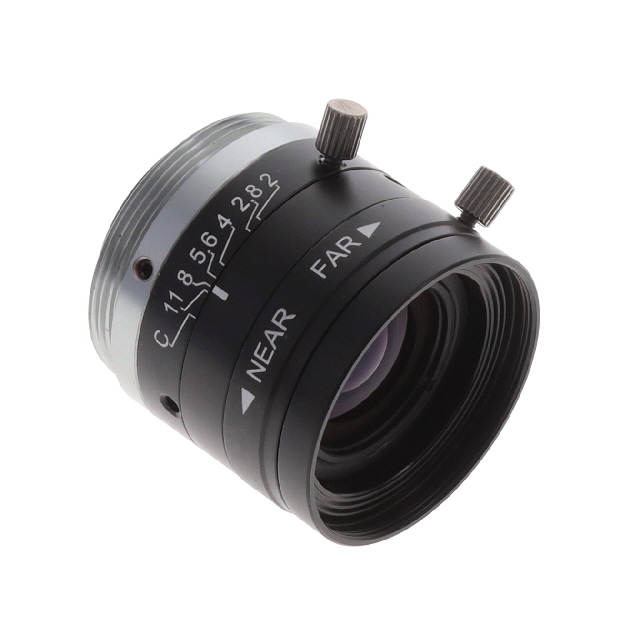

VFA1-118-5M16
ActiveNEW TRY
LENS W ANG F2 0.018X-0.162X C-MT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | VFA1-118-5M16 |
|---|---|
| Compatible Sensor Size (Max) [Max] | |
| Depth Of Field | 12.7 mm |
| Diameter [diameter] | 26.8 mm |
| Field of View [x] | 4065.3 mm, 121 mm |
| Field of View [y] | 161.3 mm, 5420.4 mm |
| Filter Size | M25.5, P0.5 |
| Focal Length | 16 mm |
| Focal Ratio | F2 |
| Length [x] | 22.4 mm |
| Magnification [Max] | 0.162 x |
| Magnification [Min] | 0.018 x |
| Mounting Type | C-Mount |
| Operating Temperature [Max] [custom] | 50 °C |
| Operating Temperature [Min] [custom] | -10 °C |
| TV Distortion | 0.1 % |
| Type | Wide Angle |
| Working Distance [Max] | 900 mm |
| Working Distance [Min] | 100 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Case | 1 | $ 81.96 | |
| 10 | $ 76.66 | |||
| 100 | $ 70.25 | |||
Description
General part information
VFA1-118-5M16
Wide Angle Lens F2 0.018x ~ 0.162x 1/1.8" C-Mount
