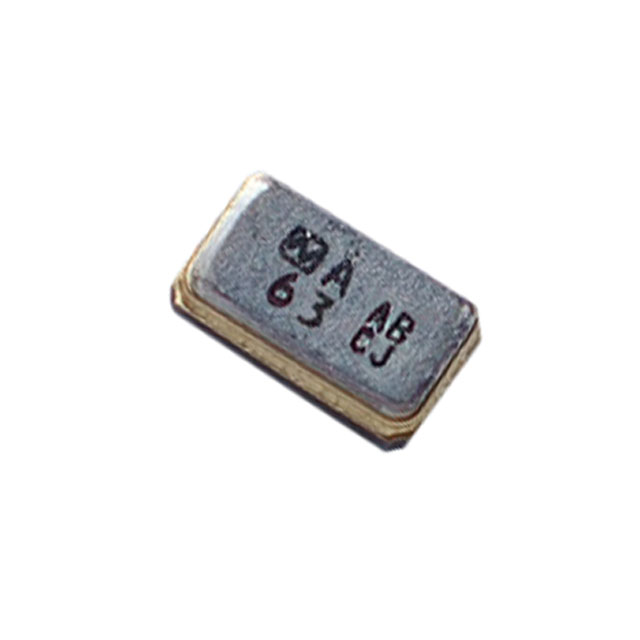

MU01500-32.768K - MU01501-32.768K

MU01500-32.768K

Active
NDK America, Inc.

CRYSTAL 32.768KHZ 7PF SMD

Deep-Dive with AI

Search across all available documentation for this part.

MU01500-32.768K - MU01501-32.768K

MU01500-32.768K

Active
NDK America, Inc.

CRYSTAL 32.768KHZ 7PF SMD

Deep-Dive with AI

Technical Specifications

Parameters and characteristics for this part

SpecificationMU01500-32.768K
ESR (Equivalent Series Resistance)80 kOhms
Frequency32.768 kHz
Frequency Tolerance20 ppm
Height - Seated (Max) [Max] [z]0.5 mm
Height - Seated (Max) [Max] [z]0.02 "
Load Capacitance7 pF
Mounting TypeSurface Mount
Operating ModeFundamental
Operating Temperature [Max]125 °C
Operating Temperature [Min]-40 °C
Package / Case2-SMD, No Lead
Size / Dimension [x]0.063 in
Size / Dimension [x]1.6 mm
Size / Dimension [y]0.039 "
Size / Dimension [y]1 mm
TypekHz Crystal (Tuning Fork)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyCut Tape (CT) 1$ 0.95
10$ 0.82
50$ 0.74
100$ 0.71
500$ 0.64
1000$ 0.61
Digi-Reel® 1$ 0.95
10$ 0.82
50$ 0.74
100$ 0.71
500$ 0.64
1000$ 0.61
Tape & Reel (TR) 3000$ 0.57
6000$ 0.55
9000$ 0.53
15000$ 0.51

Description

General part information

MU01500-32.768K

32.768 kHz ±20ppm Crystal 7pF 80 kOhms 2-SMD, No Lead

Documents

Technical documentation and resources

No documents available
