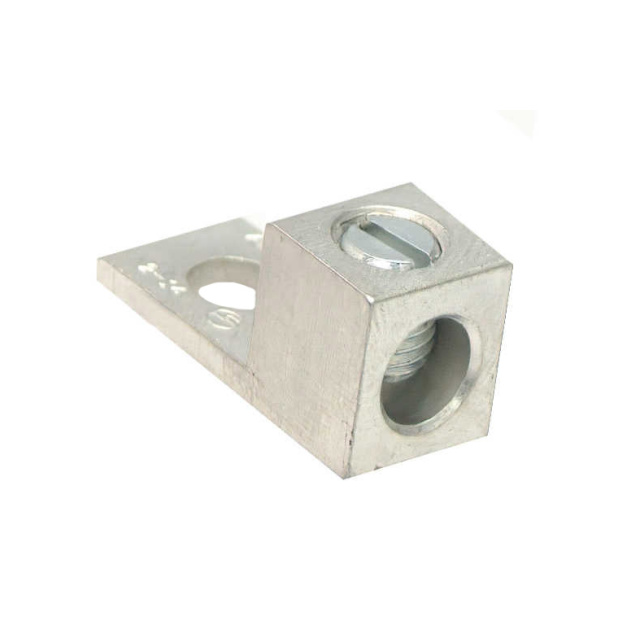

TA-2
ActiveIlsco
MECHANICAL LUG, (1)2-14AWG OR (2
Deep-Dive with AI
Search across all available documentation for this part.
TA-2
ActiveIlsco
MECHANICAL LUG, (1)2-14AWG OR (2
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TA-2 |
|---|---|
| Contact Finish | Electro-Tin |
| Contact Material | Aluminum Alloy |
| Insulation | Non-Insulated |
| Length - Overall [x] | 29.37 mm |
| Length - Overall [x] | 1.156 in |
| Mounting Type | Free Hanging (In-Line) |
| Stud/Tab Size | 0.25 Stud |
| Tab Thickness | 2.78 mm |
| Tab Thickness | 0.109 in |
| Terminal Style | Single Stud Hole |
| Terminal Type | Grounding, Lug |
| Termination | Screw |
| Width - Outer Edges [y] | 12.7 mm |
| Width - Outer Edges [y] | 0.5 in |
| Wire Gauge [Max] | 14 AWG |
| Wire Gauge [Min] | 2 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 2.37 | |
Description
General part information
TA-2
Terminal Connector Rectangular Lug, Grounding 2-14 AWG 1/4 Stud
Documents
Technical documentation and resources
No documents available
