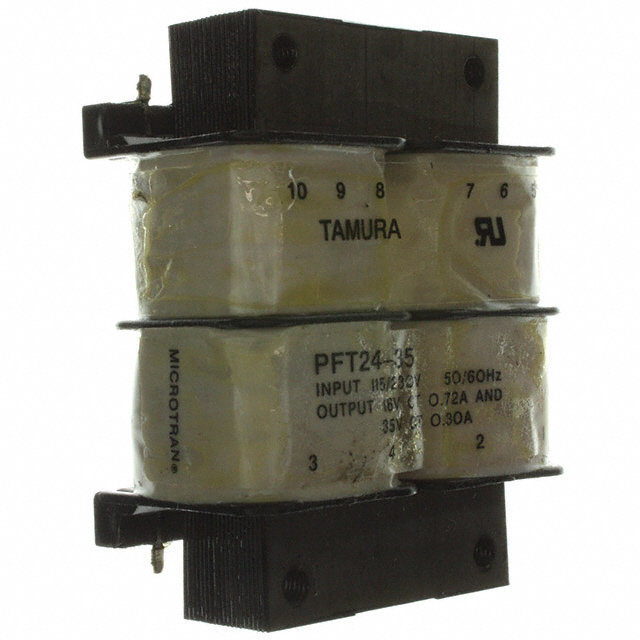

PFT24-35
ObsoleteTamura
PWR XFMR SEMI-TORO 24VA TH
Deep-Dive with AI
Search across all available documentation for this part.
PFT24-35
ObsoleteTamura
PWR XFMR SEMI-TORO 24VA TH
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PFT24-35 |
|---|---|
| Center Tap | True |
| Current - Output (Max) [custom] | 720 mA, 300 mA |
| Height - Seated (Max) [Max] [z] | 31.7 mm |
| Mounting Type | Through Hole |
| Power - Max [Max] | 24 VA |
| Primary Winding(s) | Dual |
| Secondary Winding(s) | Dual |
| Size / Dimension [x] | 71.7 mm |
| Size / Dimension [y] | 58 mm |
| Termination Style | PC Pin |
| Type | Semi-Toroidal |
| Voltage - Isolation | 1500 VAC |
| Voltage - Primary | 115 V, 230 V |
| Voltage - Secondary (Full Load) [custom] | 16 V |
| Voltage - Secondary (Full Load) [custom] | 35 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
PFT24-35
PWR XFMR SEMI-TORO 24VA TH
Documents
Technical documentation and resources
No documents available
