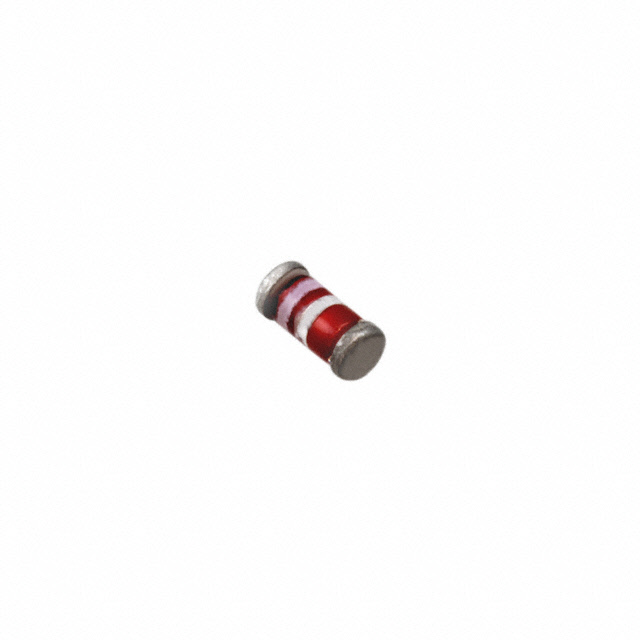

JANTX1N4106UR-1
UnknownMACOM Technology Solutions
DIODE ZENER 12V 500MW DO213AA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | JANTX1N4106UR-1 |
|---|---|
| Current - Reverse Leakage @ Vr | 50 nA |
| Grade | Military |
| Impedance (Max) (Zzt) [Max] | 200 Ohms |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 347 °F |
| Operating Temperature [Min] | -65 ░C |
| Package / Case | DO-213AA (Glass) |
| Power - Max [Max] | 500 mW |
| Qualification | MIL-PRF-19500/435 |
| Supplier Device Package | DO-213AA |
| Tolerance | 5 % |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V |
| Voltage - Zener (Nom) (Vz) | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 225 | $ 9.00 | |
Description
General part information
JANTX1N4106UR-1
Zener Diode 12 V 500 mW ±5% Surface Mount DO-213AA
