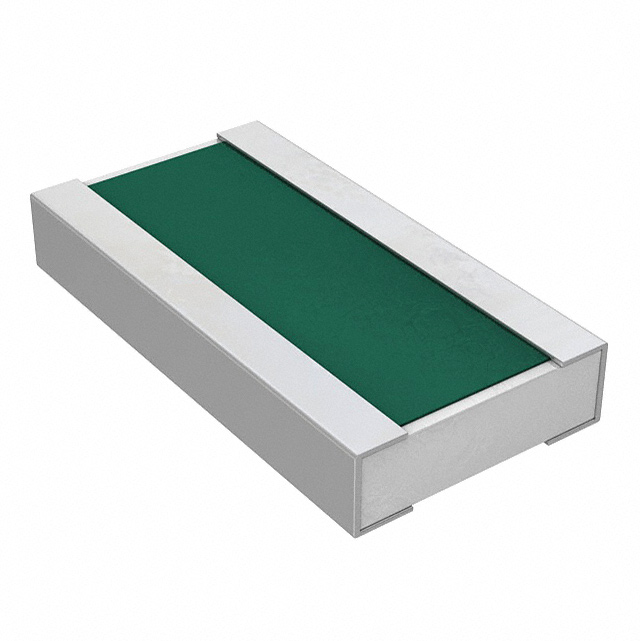

PRG3216P-1601-D-T5
ActiveSusumu
RES SMD 1.6K OHM 1W 1206 WIDE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PRG3216P-1601-D-T5
ActiveSusumu
RES SMD 1.6K OHM 1W 1206 WIDE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PRG3216P-1601-D-T5 |
|---|---|
| Composition | Thin Film |
| Height - Seated (Max) [Max] [z] | 0.022 in |
| Height - Seated (Max) [Max] [z] | 0.55 mm |
| Number of Terminations | 2 |
| Operating Temperature [Max] | 155 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Wide 1206 (3216 Metric), 0612 |
| Power (Watts) | 1 W |
| Resistance | 1.6 kOhms |
| Size / Dimension [x] | 0.063 in, 1.6 mm |
| Size / Dimension [y] | 0.126 in, 3.2 mm |
| Supplier Device Package | 1206 |
| Temperature Coefficient | 25 ppm/°C |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 5000 | $ 0.13 | |
Description
General part information
PRG3216P-1601-D-T5
1.6 kOhms ±0.5% 1W Chip Resistor Wide 1206 (3216 Metric), 0612 Thin Film
