10AB75-208
ActiveAcopian Power Supplies
AC/DC CONVERTER
Deep-Dive with AI
Search across all available documentation for this part.
10AB75-208
ActiveAcopian Power Supplies
AC/DC CONVERTER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 10AB75-208 |
|---|---|
| Applications | Industrial, ITE (Commercial) |
| Approval Agency | CE, cURus, cULus |
| Current - Output 1 | 750 mA |
| Features | Adjustable Output |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 71 °C |
| Operating Temperature [Min] | -20 C |
| Size / Dimension [x] | 3.53 " |
| Size / Dimension [x] | 89.7 mm |
| Size / Dimension [y] | 2.53 " |
| Size / Dimension [y] | 64.3 mm |
| Size / Dimension [z] | 38.9 mm |
| Size / Dimension [z] | 1.53 in |
| Standard Number | 60950-1, UL 508 |
| Type | Enclosed |
| Voltage - Output 1 | 10 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 245.70 | |
| 5 | $ 240.45 | |||
| 10 | $ 235.20 | |||
| 25 | $ 229.95 | |||
Description
General part information
10AB75-208

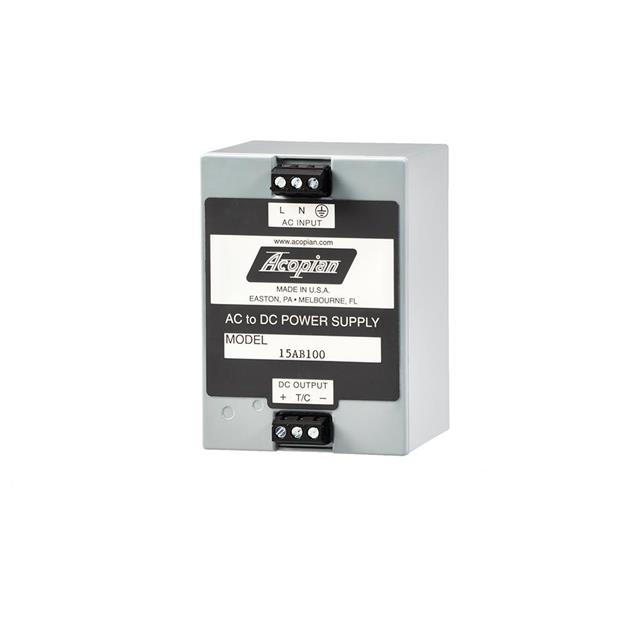

Enclosed AC DC Converters 1 Output 10V 208VAC Input
Documents
Technical documentation and resources
