TSA74-N1N1-F10
ActiveConductRF

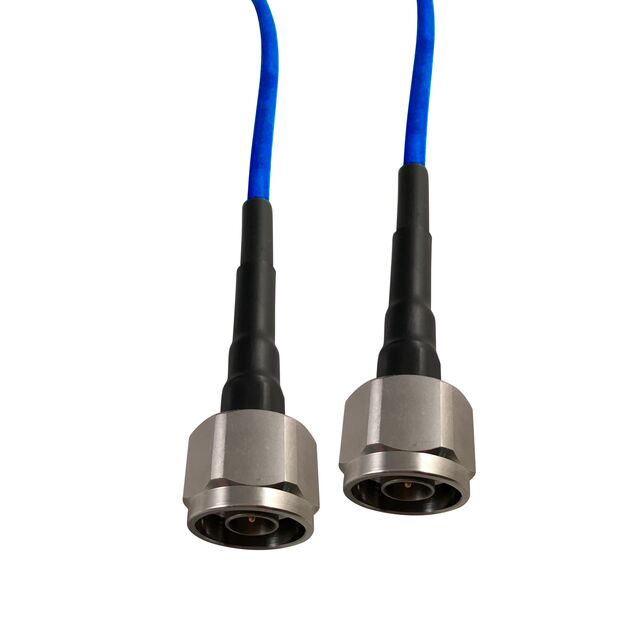

CBL ASSY NTYPE PLUG TO PLUG 10'
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TSA74-N1N1-F10
ActiveConductRF
CBL ASSY NTYPE PLUG TO PLUG 10'
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TSA74-N1N1-F10 |
|---|---|
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | N-Type Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | 4.95mm OD Coaxial Cable |
| Color | Blue |
| Connector Impedance | 50 Ohms |
| Features | Shielded |
| Frequency - Max [Max] | 18 GHz |
| Length | 10 ft |
| Length | 3 m |
| Length | 10 ' |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Overall Impedance | 50 Ohms |
| Style | N-Type to N-Type |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 258.72 | |
| 5 | $ 229.97 | |||
| 10 | $ 217.87 | |||
| 25 | $ 206.98 | |||
| 50 | $ 197.12 | |||
| 100 | $ 188.16 | |||
| 250 | $ 179.98 | |||
| 500 | $ 172.48 | |||
| 1000 | $ 165.58 | |||
Description
General part information
TSA74-N1N1-F10
Cable Assembly Coaxial N-Type to N-Type 4.95mm OD Coaxial Cable 120.0" (3.0m) 10.0'
