YAV10H3
ActiveBURNDY

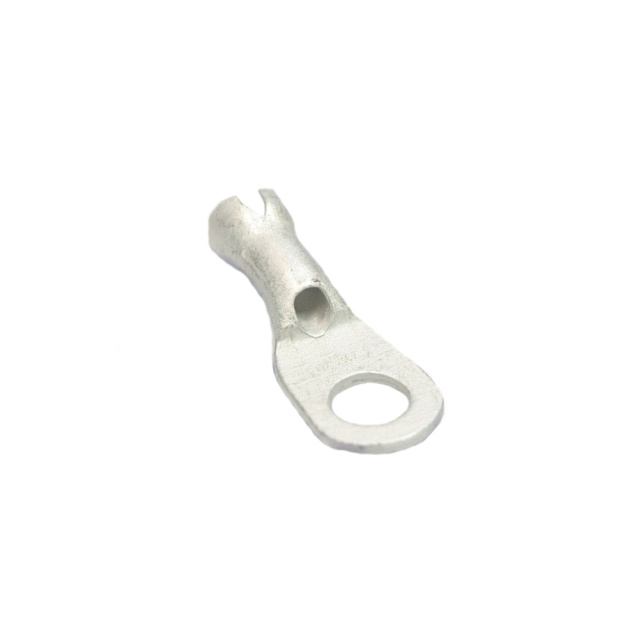

RING TERMINAL, 1/4" STUD, 12-10A
Deep-Dive with AI
Search across all available documentation for this part.
YAV10H3
ActiveBURNDY
RING TERMINAL, 1/4" STUD, 12-10A
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | YAV10H3 |
|---|---|
| Contact Finish | Tin |
| Contact Material | Copper |
| Insulation | Non-Insulated |
| Length - Overall [x] | 1.17 " |
| Length - Overall [x] | 29.72 mm |
| Mounting Type | Free Hanging (In-Line) |
| Stud/Tab Size | 0.25 Stud |
| Terminal Type | Circular |
| Termination | Crimp |
| Thickness | 50 mils |
| Thickness | 0.05 in |
| Wire Gauge [Max] | 12 AWG |
| Wire Gauge [Min] | 10 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
YAV10H3
Ring Terminal Connector 1/4 Stud Circular 10-12 AWG Crimp
Documents
Technical documentation and resources
No documents available
