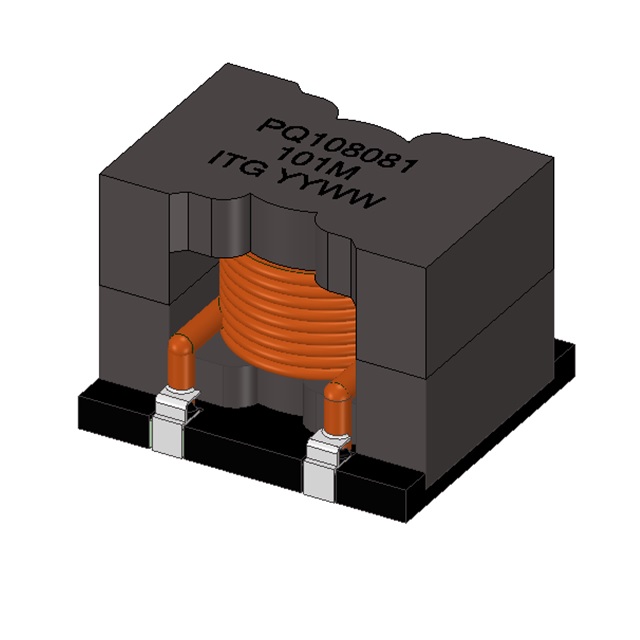

PQ108081-4R7MHF
ActiveITG Electronics, Inc.
FIXED IND 4.7UH 31A 2.5 MOHM SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PQ108081-4R7MHF
ActiveITG Electronics, Inc.
FIXED IND 4.7UH 31A 2.5 MOHM SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PQ108081-4R7MHF |
|---|---|
| Current Rating (Amps) | 31 A |
| DC Resistance (DCR) | 2.5 mOhm |
| Height - Seated (Max) [Max] [z] | 20 mm |
| Height - Seated (Max) [Max] [z] | 0.787 " |
| Inductance | 4.7 ÁH |
| Inductance Frequency - Test | 300 kHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 130 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 3 Lead |
| Package / Case | Nonstandard |
| Shielding | Shielded |
| Size / Dimension [x] | 1.098 in |
| Size / Dimension [x] | 27.94 mm |
| Size / Dimension [y] | 1.098 " |
| Size / Dimension [y] | 27.94 mm |
| Supplier Device Package | 3-SMD |
| Tolerance | 20 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 20 | $ 6.00 | |
| 180 | $ 3.00 | |||
Description
General part information
PQ108081-4R7MHF
4.7 µH Shielded Inductor 31 A 2.5mOhm Nonstandard, 3 Lead
