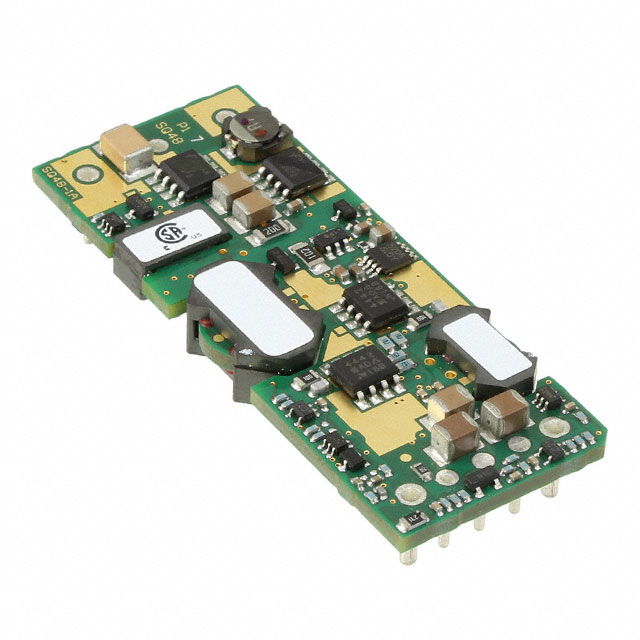

SQ48T15033-NBC0
ObsoleteEOS Power India Private Ltd
DC DC CONVERTER 3.3V 50W
Deep-Dive with AI
Search across all available documentation for this part.
SQ48T15033-NBC0
ObsoleteEOS Power India Private Ltd
DC DC CONVERTER 3.3V 50W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SQ48T15033-NBC0 |
|---|---|
| Applications | ITE (Commercial) |
| Control Features | Active Low, Enable |
| Current - Output (Max) [Max] | 15 A |
| Features | OTP, Remote On/Off, OVP, UVLO, OCP |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 8-DIP Module, 1/8 Brick |
| Power (Watts) | 50 W |
| Size / Dimension [x] | 2.3 in |
| Size / Dimension [x] | 58.4 mm |
| Size / Dimension [y] | 0.9 " |
| Size / Dimension [y] | 22.9 mm |
| Size / Dimension [z] | 6.6 mm |
| Size / Dimension [z] | 0.26 " |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 75 V |
| Voltage - Input (Min) [Min] | 36 V |
| Voltage - Isolation | 2000 V |
| Voltage - Output 1 | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
SQ48T15033-NBC0
Isolated Module DC DC Converter 1 Output 3.3V 15A 36V - 75V Input
Documents
Technical documentation and resources
No documents available
