5209
ActivePololu

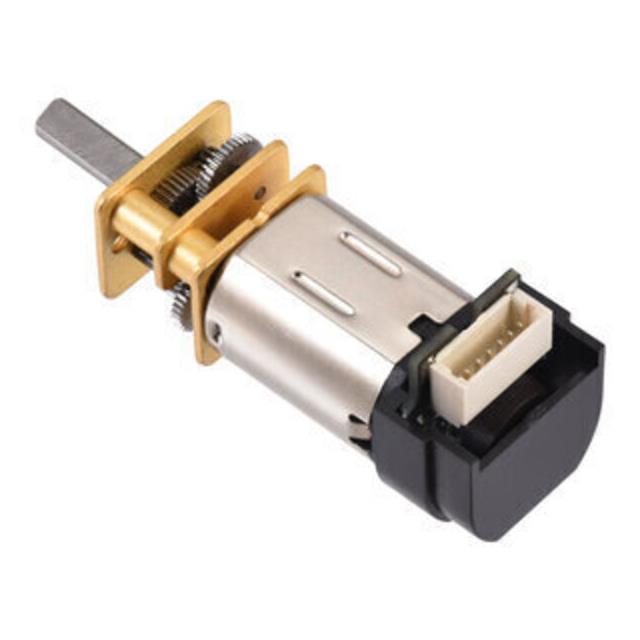

15:1 HPCB 12V MMGM W/ENC SIDE CO
Deep-Dive with AI
Search across all available documentation for this part.
5209
ActivePololu
15:1 HPCB 12V MMGM W/ENC SIDE CO
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 5209 |
|---|---|
| Diameter - Shaft [diameter] | 3 mm |
| Diameter - Shaft [diameter] | 0.118 in |
| Encoder Type | Incremental |
| Gear Reduction Ratio | 15.25 |
| Length - Shaft and Bearing | 9 mm |
| Length - Shaft and Bearing [x] | 0.354 in |
| Motor Type | Brushed |
| Power - Rated | 1.4 W |
| RPM | 2200 RPM |
| Size / Dimension [x] | 10 mm |
| Size / Dimension [x] | 0.394 " |
| Size / Dimension [y] | 12 mm |
| Size / Dimension [y] | 0.472 " |
| Termination Style | Connector |
| Type | DC Motor |
| Voltage - Rated | 12 VDC |
| Weight | 0.024 lb |
| Weight | 11 g |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 28.45 | |
| Retail Package | 6 | $ 12.22 | ||
| 12 | $ 11.18 | |||
| 30 | $ 10.07 | |||
| 102 | $ 8.95 | |||
| 252 | $ 8.33 | |||
| 504 | $ 7.95 | |||
| 1002 | $ 7.86 | |||
Description
General part information
5209
Brushed DC Motor Gearmotor 2200 RPM 1.4W Incremental 12V
Documents
Technical documentation and resources
No documents available
