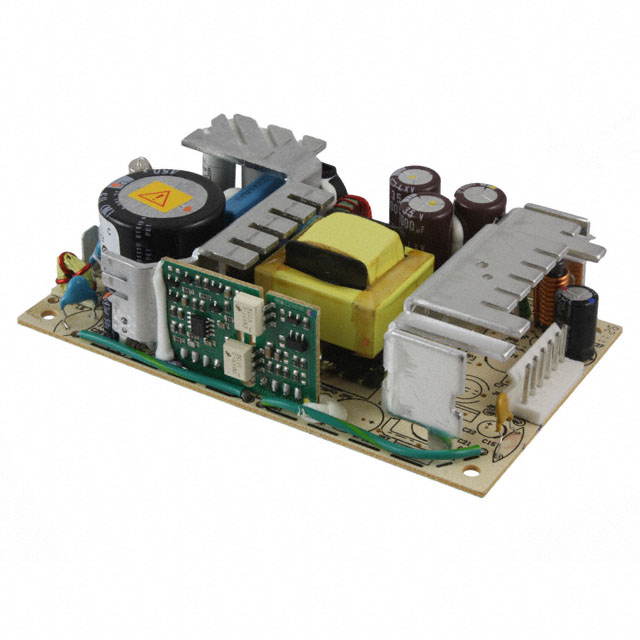

NLP65-3322J
ObsoleteARTESYN / Advanced Energy
AC/DC CONVERTER 5V 24V 12V 60W
Deep-Dive with AI
Search across all available documentation for this part.
NLP65-3322J
ObsoleteARTESYN / Advanced Energy
AC/DC CONVERTER 5V 24V 12V 60W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | NLP65-3322J |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CE |
| Current - Output 1 | 7 A |
| Current - Output 2 | 1.5 A |
| Current - Output 3 | 700 mA |
| Efficiency | 72 % |
| Features | Universal Input, DC Input Capable |
| Minimum Load Required | True |
| Mounting Type | Chassis Mount |
| Number of Outputs | 3 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | 0 °C |
| Power (Watts) | 70 W, 60 W |
| Size / Dimension [x] | 5 in |
| Size / Dimension [x] | 127 mm |
| Size / Dimension [y] | 3 " |
| Size / Dimension [y] | 76.2 mm |
| Size / Dimension [z] | 32 mm |
| Size / Dimension [z] | 1.26 in |
| Type | Open Frame |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 | 5 V |
| Voltage - Output 2 | 24 V |
| Voltage - Output 3 | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
NLP65-3322J
Open Frame AC DC Converters 3 Output 5V 24V 12V 85 ~ 264 VAC Input
