MLX91221KDF-ABR-050-TU
ActiveMelexis Technologies NV

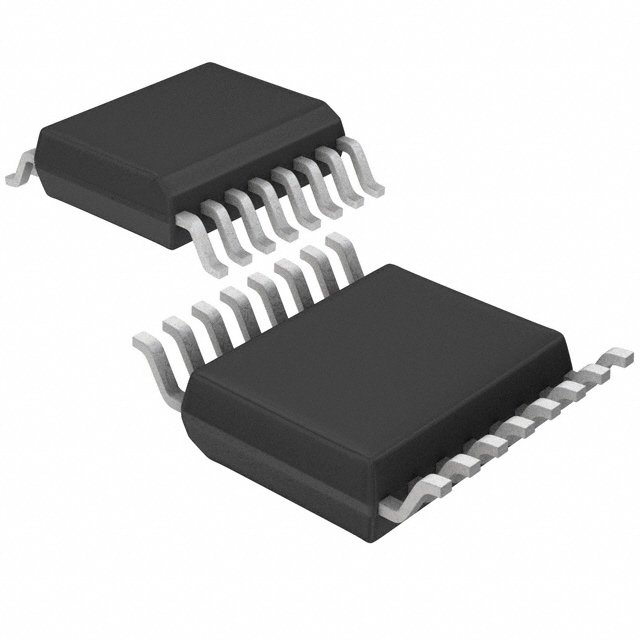

SENSOR CURRENT HALL 50A 16SOIC
Deep-Dive with AI
Search across all available documentation for this part.
MLX91221KDF-ABR-050-TU
ActiveMelexis Technologies NV
SENSOR CURRENT HALL 50A 16SOIC
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MLX91221KDF-ABR-050-TU |
|---|---|
| Current - Sensing | 50 A |
| Current - Supply (Max) [Max] | 26 mA |
| For Measuring | AC/DC |
| Frequency [Max] | 300 kHz |
| Frequency [Min] | DC |
| Linearity | ±0.6% |
| Mounting Type | Surface Mount |
| Number of Channels | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Output | Voltage, Ratiometric |
| Package / Case | 16-SOIC |
| Package / Case [x] | 0.295 in |
| Package / Case [y] | 7.5 mm |
| Polarization | Bidirectional |
| Response Time | 2 µs |
| Sensitivity | 25 mV/° |
| Sensor Type | Hall Effect |
| Voltage - Supply [Max] | 3.465 V |
| Voltage - Supply [Min] | 3.135 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1014 | $ 2.72 | |
Description
General part information
MLX91221KDF-ABR-050-TU
Current Sensor 50A 1 Channel Hall Effect Bidirectional 16-SOIC (0.295", 7.50mm Width)
Documents
Technical documentation and resources
No documents available
