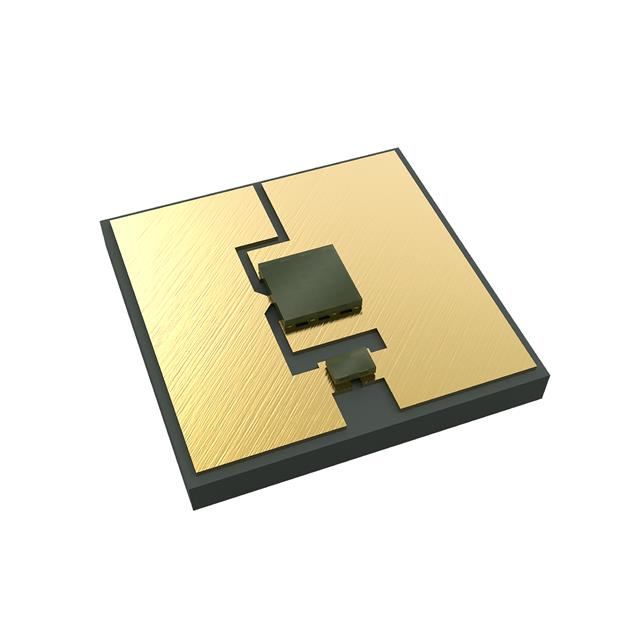

KL265-50W-SM-LA
ActiveCrystal IS
260 - 270 NM, >80MW OUTPUT POWER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
KL265-50W-SM-LA
ActiveCrystal IS
260 - 270 NM, >80MW OUTPUT POWER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | KL265-50W-SM-LA |
|---|---|
| Current - DC Forward (If) (Max) [Max] | 700 mA |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Top View |
| Package / Case | 3535 Metric |
| Package / Case | 1414 |
| Type | Ultraviolet (UV) |
| Viewing Angle | 130 ° |
| Voltage - Forward (Vf) (Typ) | 6.5 V |
| Wavelength | 265 nm |
| Wavelength [Max] | 270 nm |
| Wavelength [Min] | 260 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 23.20 | |
| 10 | $ 17.50 | |||
| 100 | $ 14.70 | |||
| 500 | $ 13.50 | |||
| Digi-Reel® | 1 | $ 23.20 | ||
| 10 | $ 17.50 | |||
| 100 | $ 14.70 | |||
| 500 | $ 13.50 | |||
| Tape & Reel (TR) | 1000 | $ 12.75 | ||
Description
General part information
KL265-50W-SM-LA
Ultraviolet (UV) Emitter 265nm (260nm ~ 270nm) 6.5V 700mA 130° 1414 (3535 Metric)
