EMSA090067-P5RP-SZ
ObsoleteCUI Inc.

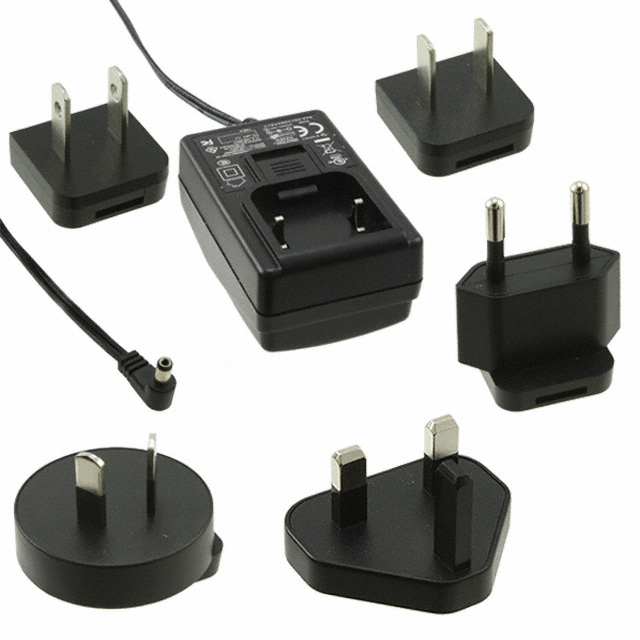

AC/DC WALL MOUNT ADAPTER 9V 6W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EMSA090067-P5RP-SZ
ObsoleteCUI Inc.
AC/DC WALL MOUNT ADAPTER 9V 6W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | EMSA090067-P5RP-SZ |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | GS, CE, CCC, cULus, PSE |
| Cord Length | 60.2 in |
| Cord Length | 1.53 m |
| Current - Output (Max) [Max] | 670 mA |
| Efficiency | Level V |
| Form | Wall Mount (Class II) |
| Input Connector | Multi-Blade |
| Input Type | Multi-Blade (Included) |
| No Load Power Consumption | 300 mW |
| Operating Temperature [Max] | 40 °C |
| Operating Temperature [Min] | 0 °C |
| Output Connector | Barrel Plug R/A |
| Output Connector [x] | 2.1 mm |
| Output Connector [y] | 5.5 mm |
| Output Connector [z] | 9.5 mm |
| Polarization | Positive Center |
| Power (Watts) | 6 W |
| Region Utilized | International |
| Size / Dimension [x] | 2.52 in |
| Size / Dimension [x] | 64 mm |
| Size / Dimension [y] | 1.59 " |
| Size / Dimension [y] | 40.5 mm |
| Size / Dimension [z] | 30 mm |
| Size / Dimension [z] | 1.18 in |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Output | 9 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
EMSA090067-P5RP-SZ
9V 6 W AC/DC External Wall Mount (Class II) Adapter Multi-Blade (Included) Input
