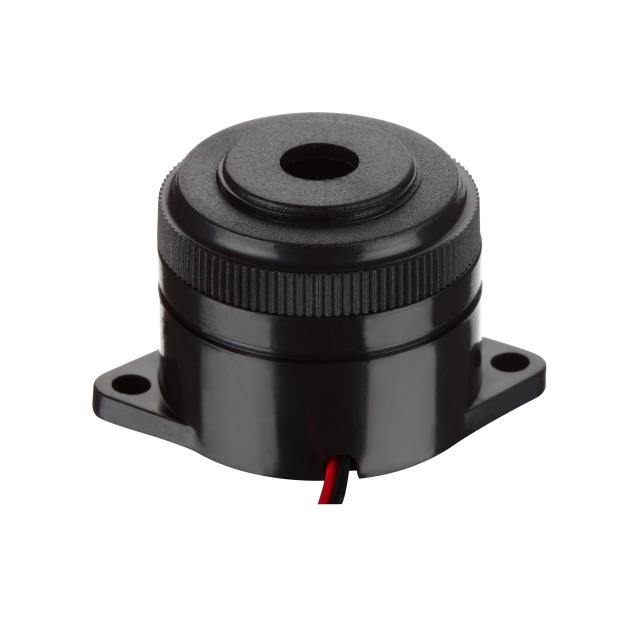

FM-12C-901L
ActiveEast Electronics
BUZZER 12V 41.2MM WIRE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
FM-12C-901L
ActiveEast Electronics
BUZZER 12V 41.2MM WIRE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | FM-12C-901L |
|---|---|
| Current - Supply | 10 mA |
| Frequency | 3.7 kHz |
| Height - Seated (Max) [Max] | 0.965 " |
| Height - Seated (Max) [Max] | 24.5 mm |
| Mounting Type | Wire Lead |
| Operating Mode | Pulse, Fast |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Size / Dimension [diameter] | 1.622 in |
| Size / Dimension [diameter] | 41.2 mm |
| Sound Pressure Level (SPL) | 90 dB |
| Termination | Wire Leads |
| Voltage - Rated | 12 VDC |
| Voltage Range [Max] | 20 V |
| Voltage Range [Min] | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 4.24 | |
| 100 | $ 2.80 | |||
| 1000 | $ 2.29 | |||
Description
General part information
FM-12C-901L
Buzzers 12 V 10mA 3.7kHz 90dB @ 12V, 30cm Wire Lead Wire Leads
