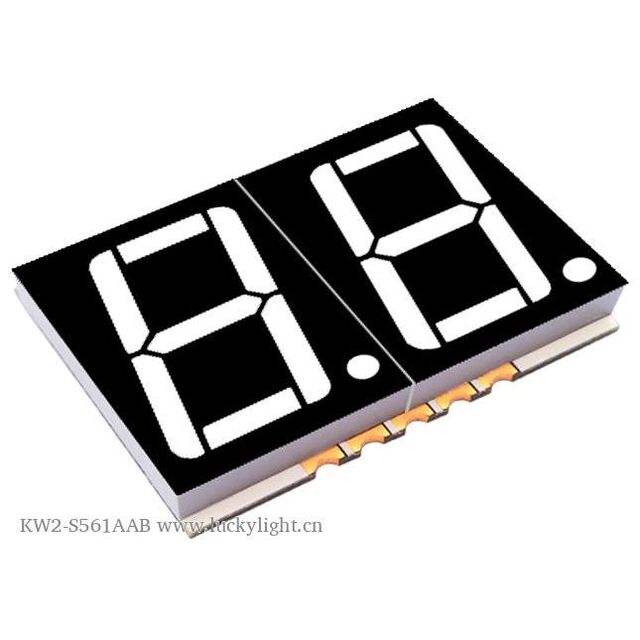

KW2-S561AAB
ActiveLuckylight
0.56'' 2-DIGIT 7SEG ORG SMD DISP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
KW2-S561AAB
ActiveLuckylight
0.56'' 2-DIGIT 7SEG ORG SMD DISP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | KW2-S561AAB |
|---|---|
| Common Pin | Common Anode |
| Current - Test | 20 mA |
| Digit/Alpha Size | 0.56 in |
| Digit/Alpha Size | 14.22 mm |
| Display Type | 7-Segment |
| Millicandela Rating | 28 mcd |
| Number of Characters | 2 |
| Package / Case | 10-SMD, No Lead |
| Power Dissipation (Max) [Max] | 48 mW |
| Size / Dimension [x] | 0.148 " |
| Size / Dimension [x] | 3.75 mm |
| Size / Dimension [y] | 0.988 " |
| Size / Dimension [y] | 25.1 mm |
| Size / Dimension [z] | 0.748 " |
| Size / Dimension [z] | 19 mm |
| Voltage - Forward (Vf) (Typ) | 2.1 V |
| Wavelength - Peak | 610 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
KW2-S561AAB
Display Modules - LED Character and Numeric Orange 7-Segment 2 Character Common Anode 2.1V 20mA 0.748" H x 0.988" W x 0.148" D (19.00mm x 25.10mm x 3.75mm) 10-SMD, No Lead
Documents
Technical documentation and resources
