SB20-07WL
ActiveJAM
2 MM W TO B CONNECTOR 7P HEADER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SB20-07WL
ActiveJAM
2 MM W TO B CONNECTOR 7P HEADER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SB20-07WL |
|---|---|
| Connector Type | Header |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.13 in |
| Contact Length - Post | 3.3 mm |
| Contact Material | Brass |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating (Amps) | 2 A |
| Fastening Type | Detent Lock |
| Insulation Height | 6 mm |
| Insulation Height | 0.236 in |
| Insulation Material | Polyamide (PA66), Nylon 6/6, Glass Filled |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 7 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Pitch - Mating [x] | 0.079 in |
| Pitch - Mating [x] | 2 mm |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Kinked Pin, Solder |
| Voltage Rating | 250 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.39 | |
| 10 | $ 0.29 | |||
| 25 | $ 0.26 | |||
| 50 | $ 0.24 | |||
| 100 | $ 0.22 | |||
| 250 | $ 0.20 | |||
| 500 | $ 0.19 | |||
| 1000 | $ 0.17 | |||
| 2500 | $ 0.16 | |||
Description
General part information

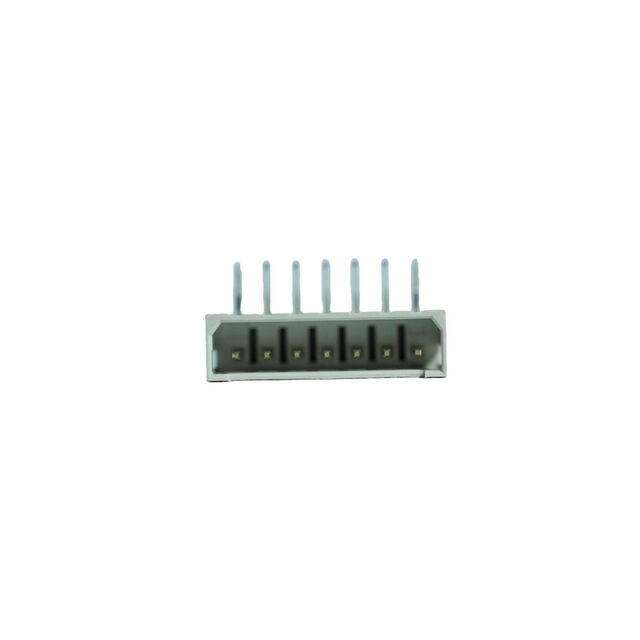

SB20-07WL
Connector Header Through Hole, Right Angle 7 position 0.079" (2.00mm)
