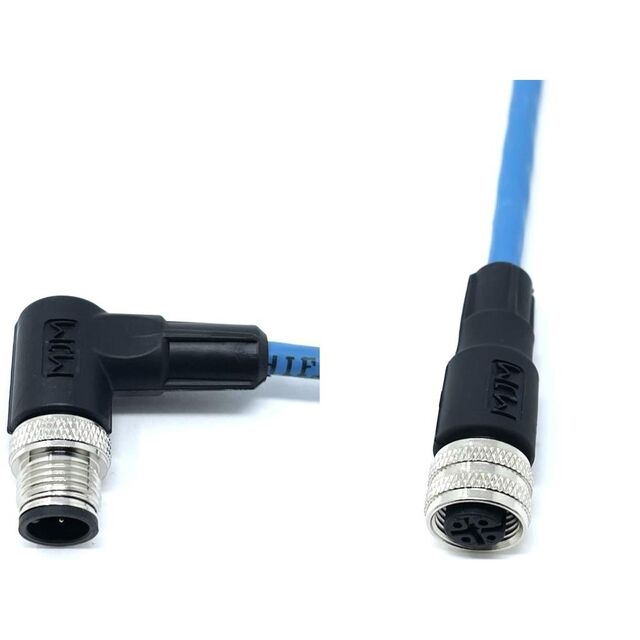

M12A05M9-0197C-M12A05F1
ActiveMJM Industries
CIRC CBL 5POS PLUG TO RCPT 16.4'
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | M12A05M9-0197C-M12A05F1 |
|---|---|
| 1st Connector Gender | Male Pins |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Connector Number of Positions | 5 |
| 1st Connector Number of Positions Loaded | 5 |
| 1st Connector Orientation | A |
| 1st Connector Shell Size - Insert | M12 |
| 1st Connector Type | Plug |
| 2nd Connector Gender | Female Sockets |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Connector Number of Positions | 5 |
| 2nd Connector Number of Positions Loaded | 5 Positions |
| 2nd Connector Shell Size - Insert | M12 |
| 2nd Connector Type | Receptacle |
| Assembly Configuration | Standard |
| Cable Material | Polyurethane (PUR) |
| Cable Type | Round |
| Color | Blue |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Shielding | Unshielded |
| Usage | Industrial Environments |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 79.58 | |
| 10 | $ 55.70 | |||
| 25 | $ 50.93 | |||
| 50 | $ 46.47 | |||
| 100 | $ 45.20 | |||
| 250 | $ 43.93 | |||
| 500 | $ 42.65 | |||
| 1000 | $ 41.38 | |||
Description
General part information
M12A05M9-0197C-M12A05F1
Circular Cable Assembly Unshielded 16.40' (5.00m)
