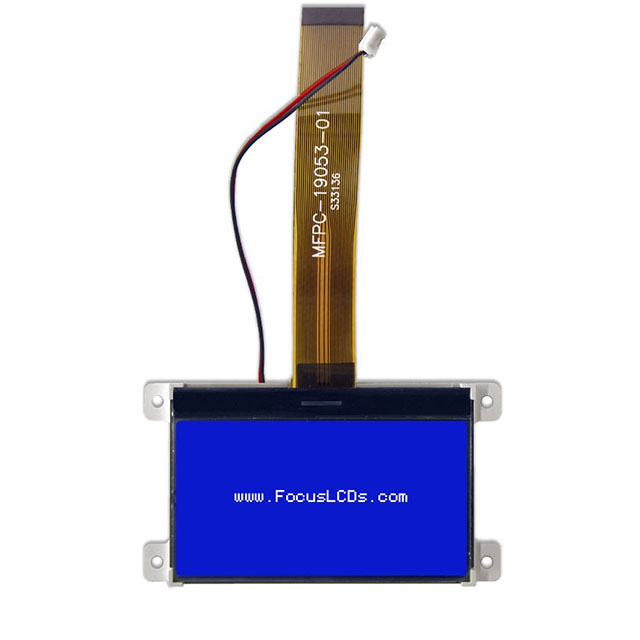

G12864A-BW-LW63
ActiveFocus LCDs
128X64 STN BLUE GRAPHIC LCD
Deep-Dive with AI
Search across all available documentation for this part.
G12864A-BW-LW63
ActiveFocus LCDs
128X64 STN BLUE GRAPHIC LCD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | G12864A-BW-LW63 |
|---|---|
| Background Color | Blue |
| Backlight | LED - White |
| Controller Type | NT7534 |
| Diagonal Screen Size | 2.8 in |
| Diagonal Screen Size | 71.12 mm |
| Display Mode | Transmissive |
| Display Type | STN - Super-Twisted Nematic |
| Dot Pixels [x] | 128 |
| Dot Pixels [y] | 64 |
| Graphics Color | White |
| Interface | Parallel, SPI |
| Touchscreen | Non-Touch |
| Viewing Area [x] | 69 mm |
| Viewing Area [y] | 36.5 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 17.78 | |
| 10 | $ 17.14 | |||
| 25 | $ 16.27 | |||
| 50 | $ 15.69 | |||
| 100 | $ 15.10 | |||
Description
General part information
G12864A-BW-LW63
Non-Touch Graphic LCD Display Module Transmissive White STN - Super-Twisted Nematic Parallel, SPI 2.8" (71.12mm) 128 x 64
Documents
Technical documentation and resources
No documents available
