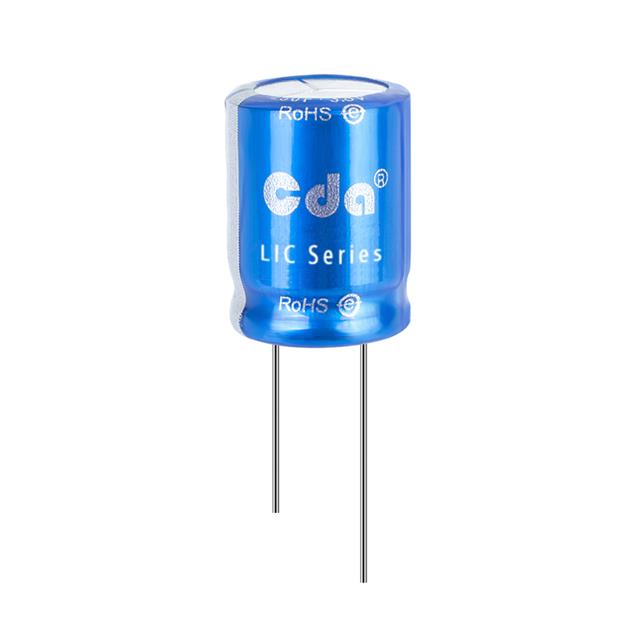

LIC1840Q3R8757
ActiveCDA (Zhifengwei Technology)
3.8V 750F 18*40 CAP LITH HYBRID
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LIC1840Q3R8757
ActiveCDA (Zhifengwei Technology)
3.8V 750F 18*40 CAP LITH HYBRID
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LIC1840Q3R8757 |
|---|---|
| Capacitance | 750 F |
| ESR (Equivalent Series Resistance) | 25 mOhm |
| Height - Seated (Max) [Max] | 1.634 " |
| Height - Seated (Max) [Max] | 41.5 mm |
| Lead Spacing | 7.5 mm |
| Lead Spacing | 0.295 in |
| Lifetime @ Temp. | 1000 Hrs |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Size / Dimension [diameter] | 0.709 " |
| Size / Dimension [diameter] | 18 mm |
| Termination | PC Pins |
| Voltage - Rated | 3.8 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 20.51 | |
| 10 | $ 15.79 | |||
| 40 | $ 13.85 | |||
| 280 | $ 11.89 | |||
| 560 | $ 11.35 | |||
Description
General part information
LIC1840Q3R8757
750 F (EDLC) Supercapacitor 3.8 V Radial, Can 25mOhm @ 1kHz 1000 Hrs @ 85°C
