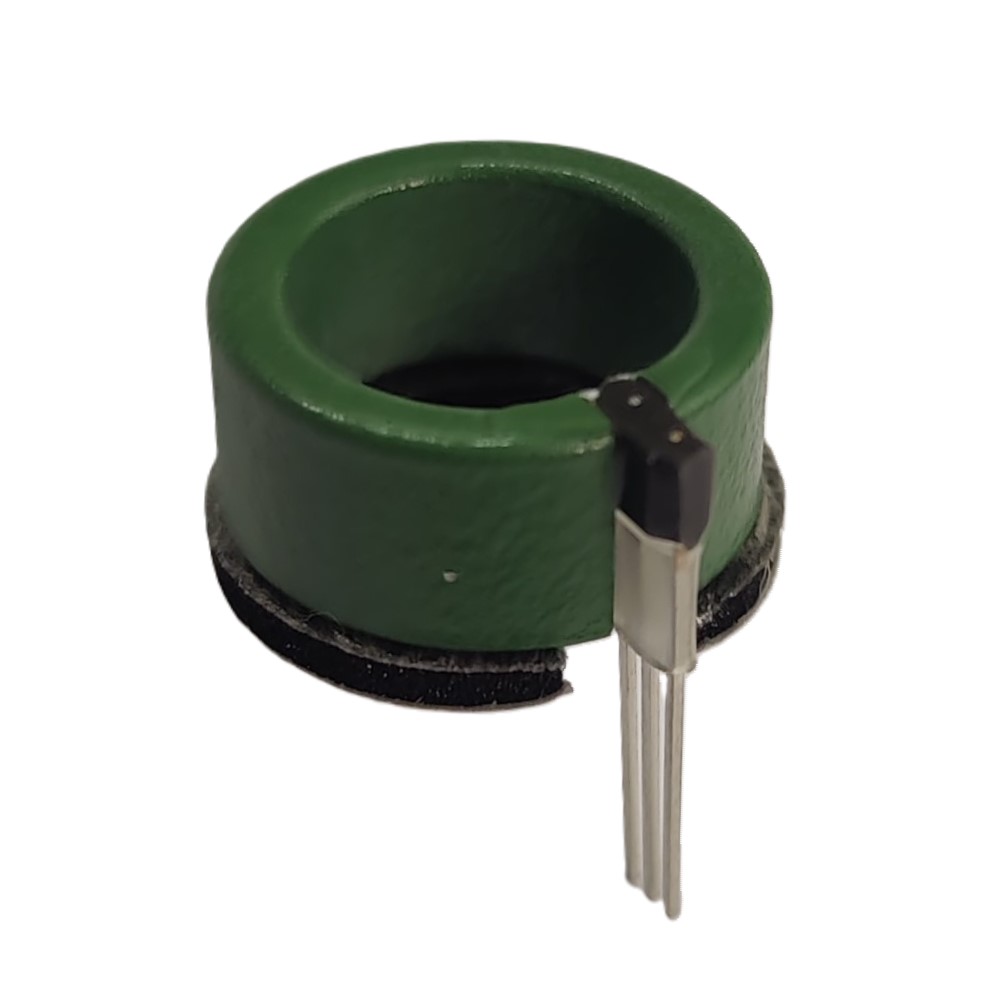

RAZCL-104OKAN
ActiveRaztec Sensors
100A CURRENT SENSOR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RAZCL-104OKAN
ActiveRaztec Sensors
100A CURRENT SENSOR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RAZCL-104OKAN |
|---|---|
| Current - Sensing | 100 A |
| Current - Supply (Max) [Max] | 11.5 mA |
| For Measuring | AC/DC |
| Frequency | 20 kHz |
| Linearity | 1 % |
| Number of Channels | 1 |
| Operating Temperature [Max] | 120 °C |
| Operating Temperature [Min] | -40 °C |
| Output | Analog Voltage |
| Polarization | Bidirectional |
| Response Time | 14 µs |
| Sensitivity | 15 mV/g |
| Sensor Type | Hall Effect, Open Loop |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 7.77 | |
| 100 | $ 7.41 | |||
| 1000 | $ 7.05 | |||
| 10000 | $ 6.72 | |||
Description
General part information
RAZCL-104OKAN
Current Sensor 100A 1 Channel Hall Effect, Open Loop Bidirectional
