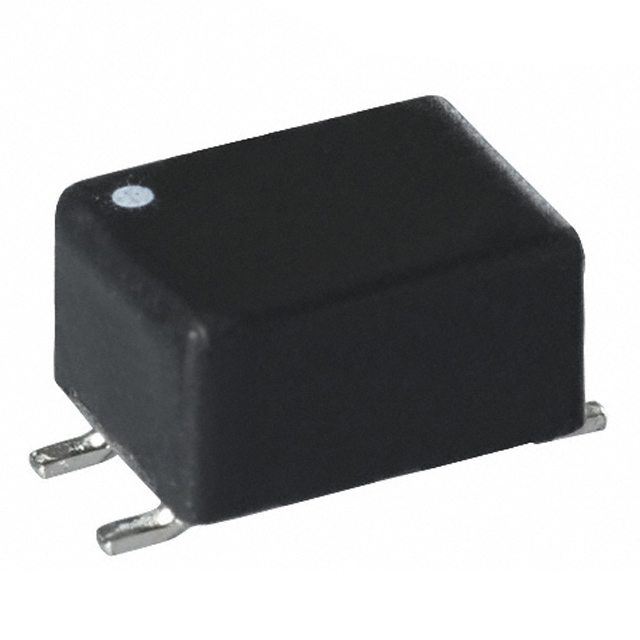

CC2824E474R-00
ObsoleteLaird Technologies - Thermal Materials
CMC 470UH 700MA 2LN 8.6KOHM SMD
Deep-Dive with AI
Search across all available documentation for this part.
CC2824E474R-00
ObsoleteLaird Technologies - Thermal Materials
CMC 470UH 700MA 2LN 8.6KOHM SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CC2824E474R-00 |
|---|---|
| Current Rating (Max) [Max] | 700 mA |
| DC Resistance (DCR) (Max) | 260 mOhm |
| Height (Max) | 3.8 mm |
| Height (Max) [Max] | 0.15 " |
| Impedance @ Frequency | 8.6 kOhms |
| Inductance @ Frequency | 470 µH |
| Mounting Type | Surface Mount |
| Number of Lines | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Horizontal, 4 Flat Lead |
| Voltage Rating - AC | 42 V |
| Voltage Rating - DC | 80 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
CC2824E474R-00
470 µH @ 100 kHz 2 Line Common Mode Choke Surface Mount 8.6 kOhms @ 5 MHz 700mA DCR 260mOhm
