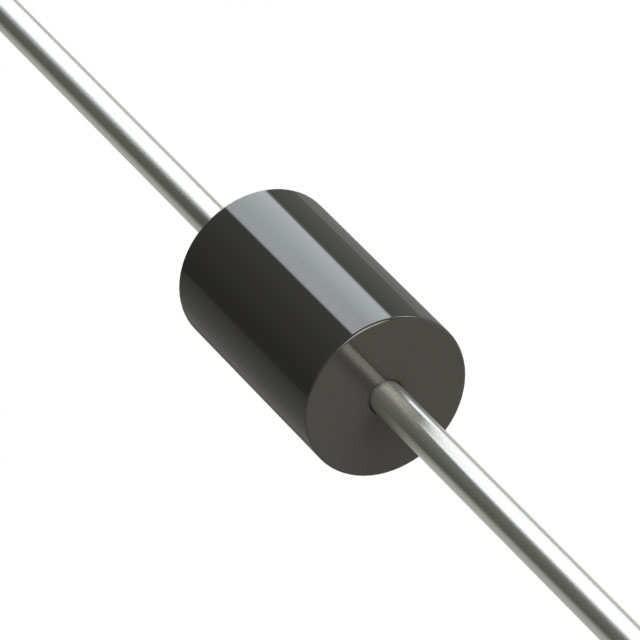

MX15KP48A/TR
Active15,000 WATT TRANSIENT VOLTAGE SUPPRESSOR (TVS) PROTECTION DEVICE
Deep-Dive with AI
Search across all available documentation for this part.
MX15KP48A/TR
Active15,000 WATT TRANSIENT VOLTAGE SUPPRESSOR (TVS) PROTECTION DEVICE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MX15KP48A/TR |
|---|---|
| Applications | General Purpose |
| Current - Peak Pulse (10/1000µs) | 193 A |
| Grade | Military |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -65 °C |
| Package / Case | DO-204AR, Axial |
| Power Line Protection | False |
| Qualification | MIL-PRF-19500 |
| Supplier Device Package | DO-204AR |
| Type | Zener |
| Unidirectional Channels [custom] | 1 |
| Voltage - Breakdown (Min) [Min] | 53.3 V |
| Voltage - Clamping (Max) @ Ipp [Max] | 77.7 V |
| Voltage - Reverse Standoff (Typ) | 48 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 100 | $ 57.76 | |
| Microchip Direct | N/A | 1 | $ 62.20 | |
| Newark | Each (Supplied on Full Reel) | 100 | $ 57.76 | |
| 500 | $ 55.55 | |||
Description
General part information
M15KP130-e3 Series
This Transient Voltage Suppressor series of M15KP22A – M15KP280CA offers an extended voltage range and also provides a variety of high reliability, uni- and bi-directional options as well. RoHS compliant versions are also available. These devices have the ability to clamp dangerous high voltage transients such as secondary effects of lightning strikes, providing circuit protection to several class levels in the IEC61000-4-5 specification. Clamping time is virtually instantaneous. It also provides protection from transients caused by inductive load dumps, RFI, and ESD, providing protection to IEC61000-4-2 and -4-4.
