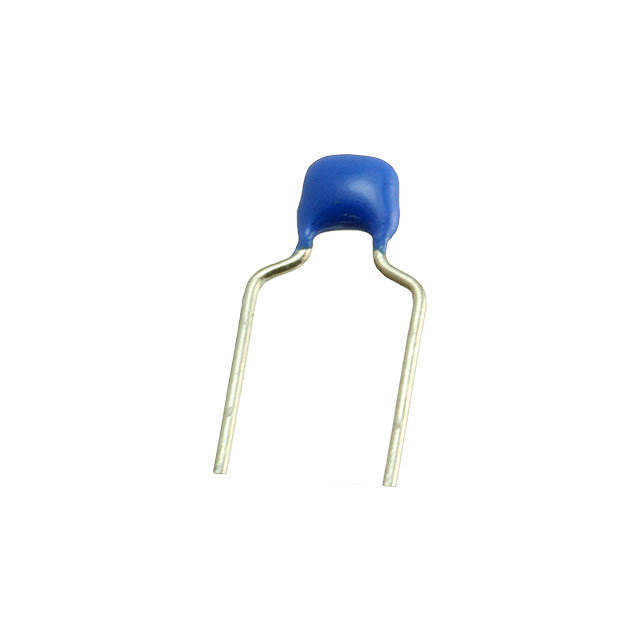

FG24X7R2E223KNT06
ActiveEPCOS - TDK Electronics
CAP CER 0.022UF 250V X7R RADIAL
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
FG24X7R2E223KNT06
ActiveEPCOS - TDK Electronics
CAP CER 0.022UF 250V X7R RADIAL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | FG24X7R2E223KNT06 |
|---|---|
| Applications | General Purpose |
| Capacitance | 0.022 µF |
| Height - Seated (Max) [Max] | 0.217 in |
| Height - Seated (Max) [Max] | 5.5 mm |
| Lead Spacing | 5 mm |
| Lead Spacing | 0.197 in |
| Lead Style | Formed Leads - Kinked |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Radial |
| Size / Dimension [x] | 0.177 in |
| Size / Dimension [x] | 4.5 mm |
| Size / Dimension [y] | 3 mm |
| Size / Dimension [y] | 0.118 in |
| Temperature Coefficient | X7R |
| Tolerance | 10 % |
| Voltage - Rated | 250 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.36 | |
| 10 | $ 0.23 | |||
| 50 | $ 0.17 | |||
| 100 | $ 0.14 | |||
| 500 | $ 0.11 | |||
| 1000 | $ 0.09 | |||
| Tape & Box (TB) | 2000 | $ 0.09 | ||
| 4000 | $ 0.08 | |||
| 10000 | $ 0.08 | |||
| 14000 | $ 0.08 | |||
| 50000 | $ 0.07 | |||
| 100000 | $ 0.06 | |||
Description
General part information
FG24X7R2E223KNT06
0.022 µF ±10% 250V Ceramic Capacitor X7R Radial
