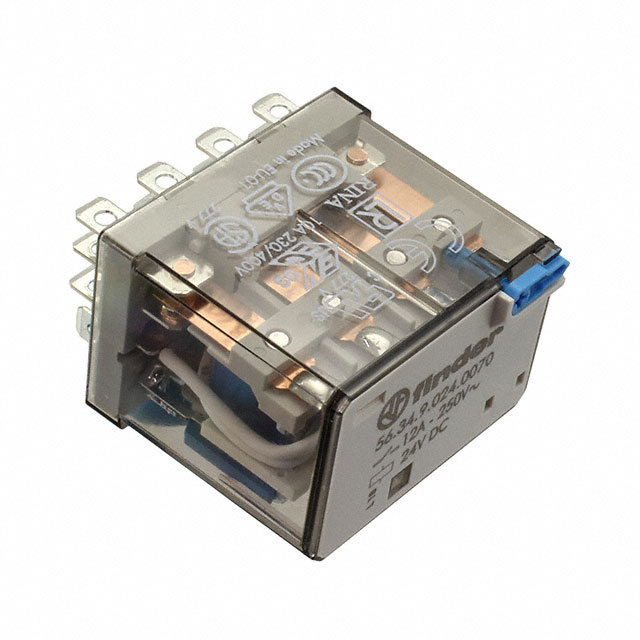

56.34.9.024.0070
ActiveFinder Relays, Inc.
RELAY GEN PURPOSE 4PDT 12A 24V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
56.34.9.024.0070
ActiveFinder Relays, Inc.
RELAY GEN PURPOSE 4PDT 12A 24V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 56.34.9.024.0070 |
|---|---|
| Approval Agency | cURus, VDE, CE, UKCA, CSA, CCC, RINA, ENEC, EAC |
| Coil Current | 49 mA |
| Coil Resistance | 490 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 24 VDC |
| Contact Form | 4PDT (4 Form C) |
| Contact Material | Silver Nickel (AgNi) |
| Contact Rating (Current) | 12 A |
| Features | Test Button, Lighted Indicator |
| Load - Max Switching | 4800 VA |
| Mounting Type | Socketable |
| Must Operate Voltage | 19.2 VDC |
| Must Release Voltage | 4.8 VDC |
| Operate Time | 11 ms |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -40 °C |
| Relay Type | General Purpose |
| Release Time | 11 ms |
| Switching Voltage [Max] | 400 VAC |
| Termination Style | Plug In, Quick Connect - 0.187" (4.7mm) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 23.41 | |
| 10 | $ 20.85 | |||
| 30 | $ 19.73 | |||
| 50 | $ 19.23 | |||
| 100 | $ 18.57 | |||
| 250 | $ 17.73 | |||
| 500 | $ 17.12 | |||
Description
General part information
56.34.9.024.0070
General Purpose Relay 4PDT (4 Form C) 24VDC Coil Socketable
