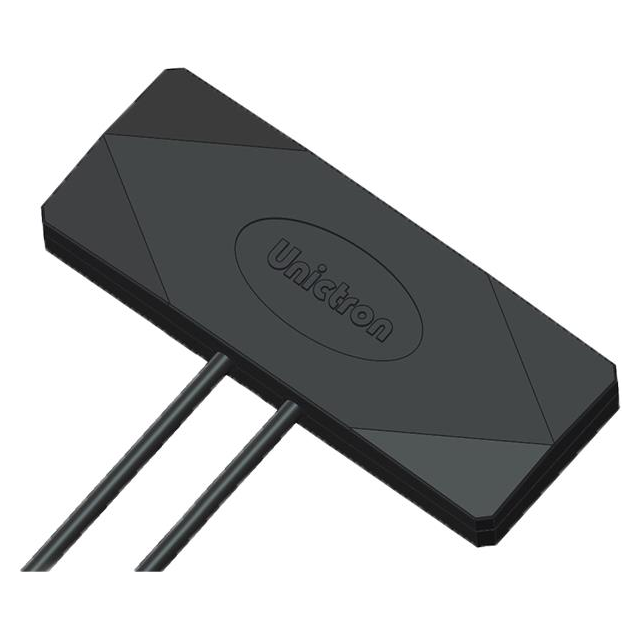

H2MA301D100100
ActiveUnictron Technologies Corporation
LTE MIMO EXTERNAL ANTENNA
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
H2MA301D100100
ActiveUnictron Technologies Corporation
LTE MIMO EXTERNAL ANTENNA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | H2MA301D100100 |
|---|---|
| Antenna Type | Flat Patch |
| Applications | LTE, 4G |
| Features | Cable - 2m |
| Frequency (Center/Band) | 829 MHz, 3.6 GHz, 1.94 GHz, 2.585 GHz, 2.35 GHz |
| Frequency Group | Wide Band |
| Frequency Range [Max] | 2.4 GHz, 2.17 GHz, 960 MHz, 2.69 GHz, 3.8 GHz |
| Frequency Range [Min] | 3.4 GHz, 1.71 GHz, 2.3 GHz, 2.49 GHz, 698 MHz |
| Gain | 1.2 dBi, 2.4 dBi, 1.5 dBic, 3.1 dBi, 1.1 dBi, 3.2 dBi, 1.4 dBi |
| Height (Max) [Max] | 17 mm |
| Height (Max) [Max] | 0.669 in |
| Ingress Protection | IP67 |
| Mounting Type | Adhesive |
| Number of Bands [custom] | 5 |
| RF Family/Standard | Cellular |
| VSWR | 5, 3 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 37.97 | |
| 10 | $ 35.42 | |||
| 25 | $ 33.94 | |||
| 100 | $ 30.75 | |||
| 250 | $ 29.69 | |||
Description
General part information
H2MA301D100100
RF ANTENNA 4G, LTE Flat Patch SMA Male Adhesive
