5020.039.228
ActiveFlexa

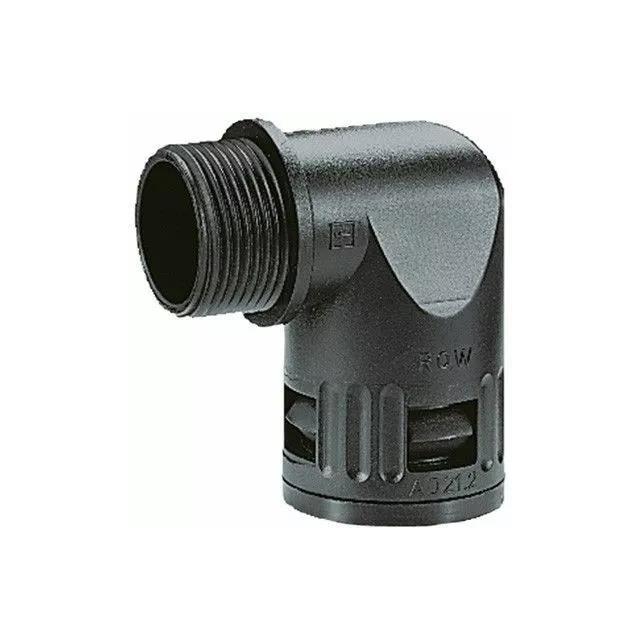

RQW 90 DEGREE ELBOW CONNECTOR, F
Deep-Dive with AI
Search across all available documentation for this part.
5020.039.228
ActiveFlexa
RQW 90 DEGREE ELBOW CONNECTOR, F
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 5020.039.228 |
|---|---|
| Color | Black |
| Ingress Protection | IP68, IP69K |
| Material | Polyamide (PA), Nylon |
| Operating Temperature [Max] | 120 °C |
| Operating Temperature [Min] | -40 °C |
| Outside Cable Diameter (Max) [Max] [diameter] | 43.94 mm |
| Outside Cable Diameter (Max) [Max] [diameter] | 1.73 in |
| Outside Cable Diameter (Min) [Min] [diameter] | 1.1 in |
| Outside Cable Diameter (Min) [Min] [diameter] | 27.94 mm |
| Thread Length | 16 mm |
| Thread Length | 0.63 in |
| Thread Size | 1" NPT |
| Type | Cable Grip - 90° |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 194.80 | |
Description
General part information
5020.039.228
Cable Grip - 90° Polyamide (PA), Nylon 1" NPT Black
Documents
Technical documentation and resources
No documents available
