NSI8242W0-DSWR
ActiveNOVOSENSE
DGTL ISOLTR 5KV 4CH GP 16-SOIC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | NSI8242W0-DSWR |
|---|---|
| Channel Type | Unidirectional |
| Common Mode Transient Immunity (Min) [Min] | 200 V/ns |
| Data Rate | 150 Mbps |
| Isolated Power | False |
| Mounting Type | Surface Mount |
| Number of Channels | 4 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 16-SOIC |
| Package / Case [x] | 0.295 in |
| Package / Case [y] | 7.5 mm |
| Propagation Delay tpLH / tpHL (Max) [custom] | 15 ns |
| Propagation Delay tpLH / tpHL (Max) [custom] | 15 ns |
| Pulse Width Distortion (Max) | 5 ns |
| Supplier Device Package | 16-SOIC |
| Technology | Capacitive Coupling |
| Type | General Purpose |
| Voltage - Supply [Max] | 5.5 V |
| Voltage - Supply [Min] | 2.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.83 | |
| 10 | $ 2.11 | |||
| 25 | $ 1.93 | |||
| 100 | $ 1.74 | |||
| 250 | $ 1.64 | |||
| 500 | $ 1.59 | |||
| Digi-Reel® | 1 | $ 2.83 | ||
| 10 | $ 2.11 | |||
| 25 | $ 1.93 | |||
| 100 | $ 1.74 | |||
| 250 | $ 1.64 | |||
| 500 | $ 1.59 | |||
| Tape & Reel (TR) | 1000 | $ 1.54 | ||
| 2000 | $ 1.50 | |||
| 3000 | $ 1.48 | |||
| 5000 | $ 1.46 | |||
Description
General part information

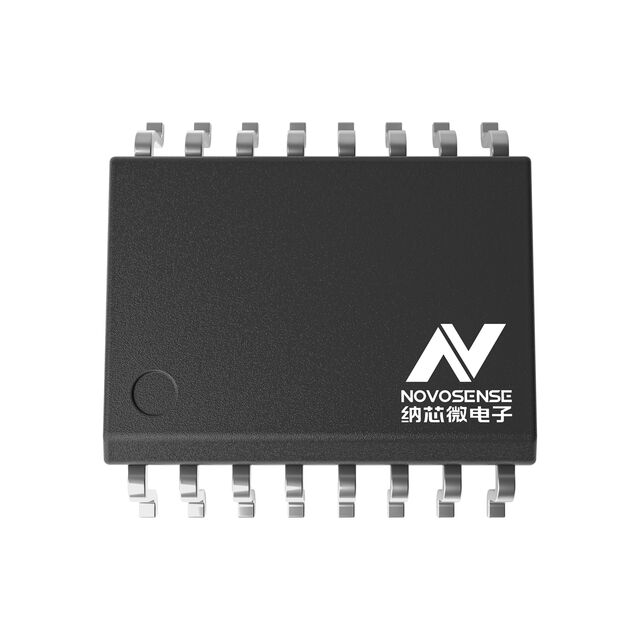

NSI8242W0-DSWR
General Purpose Digital Isolator 5000Vrms 4 Channel 150Mbps 200kV/µs CMTI 16-SOIC (0.295", 7.50mm Width)
Documents
Technical documentation and resources
