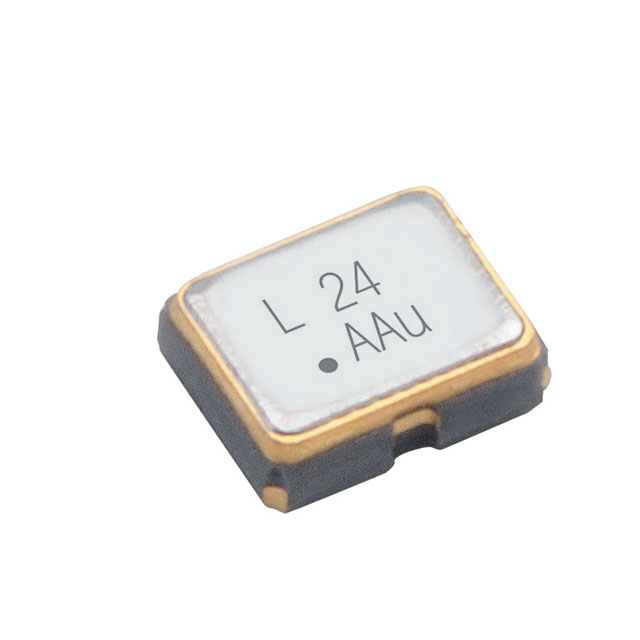

S133025T-50.000-R
ActiveAker Technology Corp
XTAL OSC XO 50.0000MHZ HCMOS SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
S133025T-50.000-R
ActiveAker Technology Corp
XTAL OSC XO 50.0000MHZ HCMOS SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | S133025T-50.000-R |
|---|---|
| Base Resonator | Crystal |
| Current - Supply (Max) [Max] | 8 mA |
| Frequency | 50 MHz |
| Frequency Stability | 25 ppm |
| Function | Enable/Disable |
| Height - Seated (Max) [Max] [z] | 0.8 mm |
| Height - Seated (Max) [Max] [z] | 0.031 " |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Output | HCMOS |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension [x] | 2 mm |
| Size / Dimension [x] | 0.079 in |
| Size / Dimension [y] | 0.063 in |
| Size / Dimension [y] | 1.6 mm |
| Type | XO (Standard) |
| Voltage - Supply | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 25 | $ 1.20 | |
| 100 | $ 0.84 | |||
| 200 | $ 0.80 | |||
| 1000 | $ 0.52 | |||
Description
General part information
S133025T-50.000-R
50 MHz XO (Standard) HCMOS Oscillator 3.3V Enable/Disable 4-SMD, No Lead
