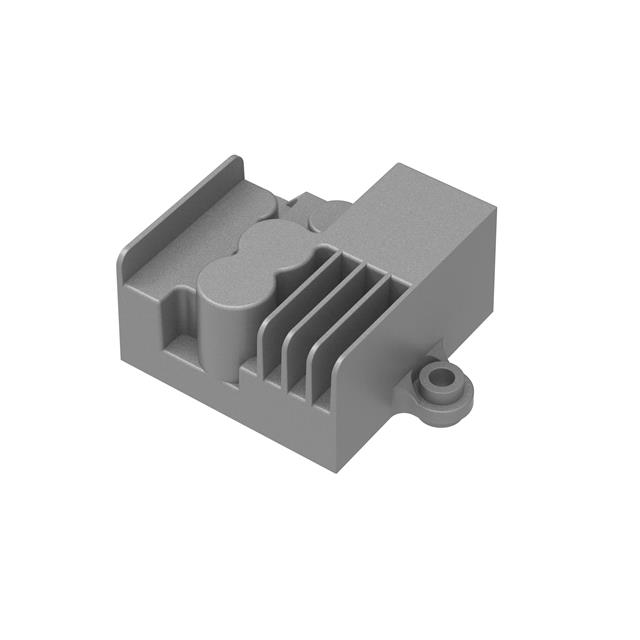

PLD125-EVDN10-12
ActiveGreen Watt Power
DC/DC CONVERTER 12V 125W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PLD125-EVDN10-12 |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) | 8 A, 2 A |
| Mounting Type | Chassis Mount |
| Number of Outputs | 2 |
| Operating Temperature [Max] | 40 °C |
| Operating Temperature [Min] | -20 °C |
| Power (Watts) | 106 W |
| Size / Dimension [x] | 3.35 in |
| Size / Dimension [x] | 85.1 mm |
| Size / Dimension [y] | 2.4 " |
| Size / Dimension [y] | 61 mm |
| Size / Dimension [z] | 1.53 in |
| Size / Dimension [z] | 38.9 mm |
| Type | Enclosed |
| Voltage - Input (Max) [Max] | 100 V |
| Voltage - Input (Min) [Min] | 36 V |
| Voltage - Output 1 | 12 V |
| Voltage - Output 2 | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Case | 1 | $ 28.13 | |
| 10 | $ 24.68 | |||
| 50 | $ 22.70 | |||
| 100 | $ 21.71 | |||
Description
General part information
PLD125-EVDN10-12
Enclosed DC DC Converter 2 Output 12V 5V 8A, 2A 100V Input
