100TDVST2
ActiveDelta Electronics
LINE FLTR 480VAC 100A CHASS MNT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
100TDVST2
ActiveDelta Electronics
LINE FLTR 480VAC 100A CHASS MNT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 100TDVST2 |
|---|---|
| Applications | General Purpose |
| Approval Agency | SEMKO, ENEC, cURus |
| Configuration | Single Stage |
| Current | 100 A |
| Filter Type | Three Phase (Delta) |
| Frequency - Operating [Max] | 60 Hz |
| Frequency - Operating [Min] | 50 Hz |
| Inductance | 300 µH |
| Mounting Type | Chassis Mount |
| Operating Temperature [custom] | 100 °C, -25 °C |
| Termination Style | Terminal Block |
| Voltage - Rated AC | 480 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
100TDVST2

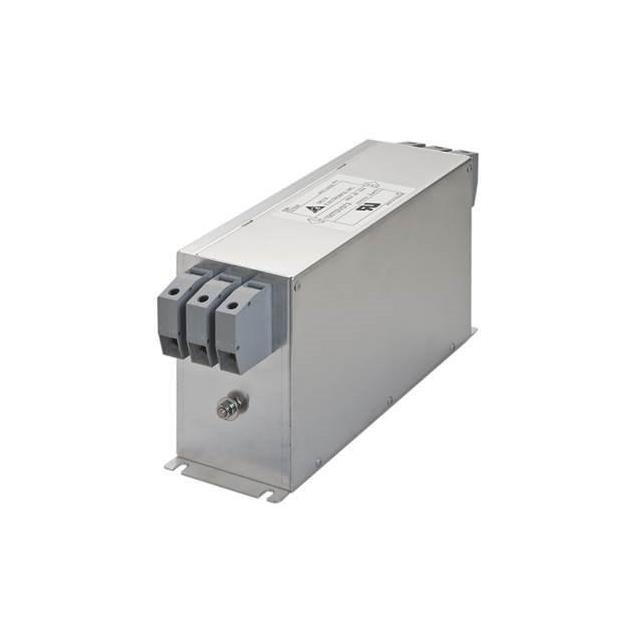

Three Phase (Delta) EMC/EMI Line Filter 100 A 480V 50/60Hz Single Stage Terminal Block
Documents
Technical documentation and resources
