BDBNCA000000S0
ActiveNextGen Components

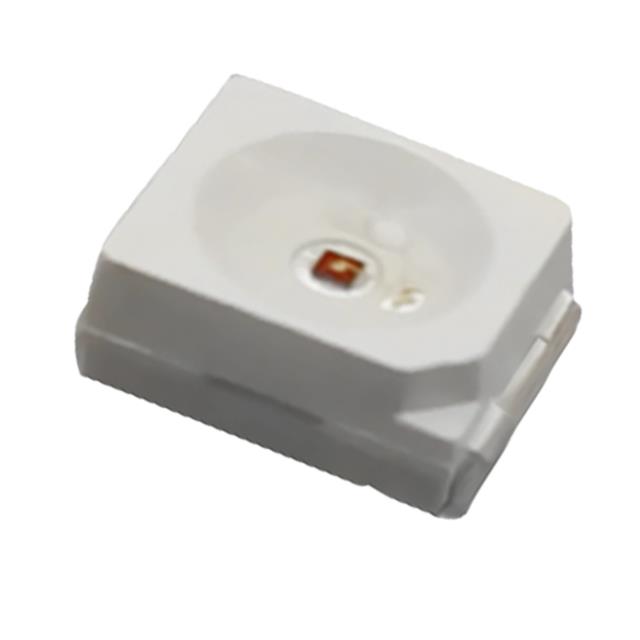

CYAN TOP LED PLCC-2
Deep-Dive with AI
Search across all available documentation for this part.
BDBNCA000000S0
ActiveNextGen Components
CYAN TOP LED PLCC-2
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | BDBNCA000000S0 |
|---|---|
| Color | Cyan |
| Configuration | Standard |
| Current - Test | 20 mA |
| Grade | Automotive |
| Height (Max) [Max] | 1.95 mm |
| Lens Color | Colorless |
| Lens Size [diameter] | 2.4 mm |
| Lens Transparency | Clear |
| Millicandela Rating | 2290 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 1411 |
| Package / Case | 3528 Metric |
| Size / Dimension [x] | 3.5 mm |
| Size / Dimension [y] | 2.8 mm |
| Supplier Device Package | P-LCC-2 |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 3 V |
| Wavelength - Peak | 503 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 2000 | $ 0.37 | |
Description
General part information
BDBNCA000000S0
Cyan 495nm LED Indication - Discrete 3V 1411 (3528 Metric)
Documents
Technical documentation and resources
No documents available
