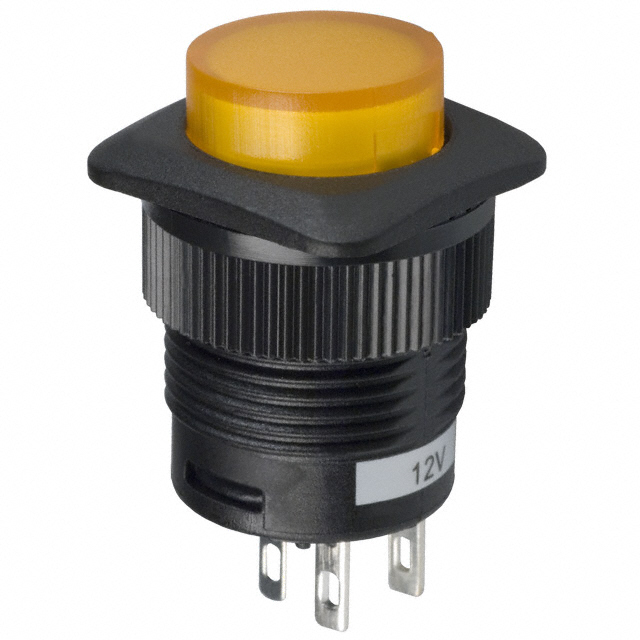

CLS-PC11A125S01Y
ObsoleteLumex Opto/Components Inc.
SWITCH PUSHBUTTON SPST 3A 125V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CLS-PC11A125S01Y
ObsoleteLumex Opto/Components Inc.
SWITCH PUSHBUTTON SPST 3A 125V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CLS-PC11A125S01Y |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Round, Button |
| Circuit | SPST |
| Color - Actuator/Cap | Yellow |
| Current Rating (Amps) | 3 A |
| Illumination Type, Color | LED, Yellow |
| Mounting Type | Panel Mount, Front |
| Panel Cutout Dimensions [diameter] | 16 mm |
| Switch Function | On-Off |
| Termination Style | Solder Lug |
| Type | Illuminated, Standard |
| Voltage Rating - AC | 125 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
CLS-PC11A125S01Y
Pushbutton Switch SPST Standard, Illuminated Panel Mount, Front
