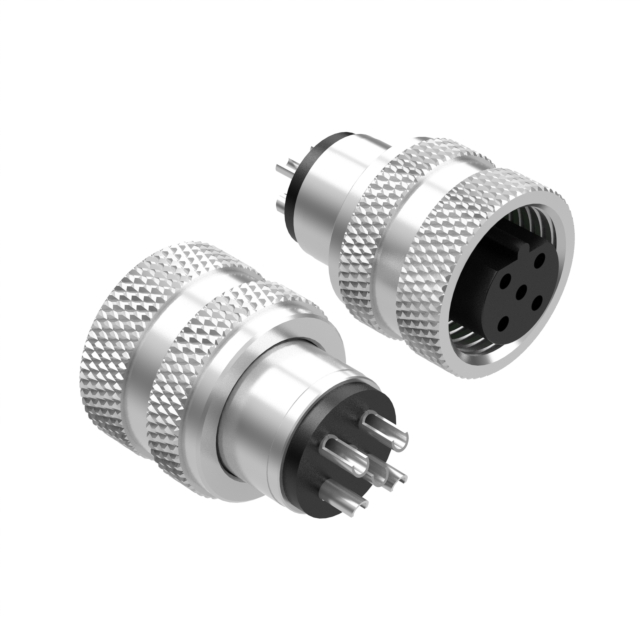

50-01020
ActiveTensility International Corp
M12 B-CODE 5POS RCPT MOLDING
Deep-Dive with AI
Search across all available documentation for this part.
50-01020
ActiveTensility International Corp
M12 B-CODE 5POS RCPT MOLDING
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 50-01020 |
|---|---|
| Cable Opening [diameter] | 0.384 in |
| Cable Opening [diameter] | 9.75 mm |
| Color | Silver |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold |
| Contact Material | Phosphor Bronze |
| Current Rating (Amps) | 4 A |
| Features | Coupling Nut |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Insert Material | Polyamide (PA66), Nylon 6/6 |
| Material Flammability Rating | UL94 HB |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Orientation | B |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Brass |
| Shell Size - Insert | M12-5 |
| Shielding | Shielded |
| Voltage Rating | 60 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 4.57 | |
| 10 | $ 4.15 | |||
| 25 | $ 3.93 | |||
| 50 | $ 3.84 | |||
| 100 | $ 3.66 | |||
| 250 | $ 3.20 | |||
| 500 | $ 3.11 | |||
| 1000 | $ 2.65 | |||
| 2500 | $ 2.47 | |||
Description
General part information
50-01020
5 Position Circular Connector Receptacle, Female Sockets Solder Cup
